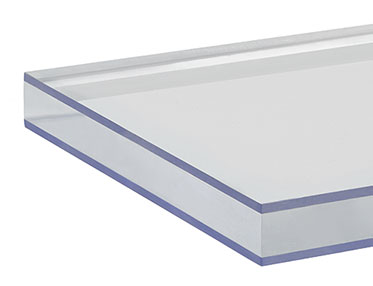

PALSHIELD® FLAT POLYCARBONATE SHEET

Ballistic-grade polycarbonate for safety & security applications

Tested to UL ballistics and ASTM forced-entry test methods, PALSHIELD sheets are an effective first level of defense against attack and unlawful entry. Due to its layered, laminated structure, PALSHIELD can withstand both physical attacks and multi-shot ballistic assaults by absorbing impact energy without shattering or spalling.  Architects, engineers, and building owners trust PALSHIELD to withstand extreme threats even while maintaining its aesthetic quality.

Nearly half the weight of glass, PALSHIELD also features an abrasion-resistant coating, which ensures long-term, glass-like clarity.

Where to BuyDownload the Spec Sheet

Benefits

Engineered to withstand physical attacks and ballistic assaults. Abrasion resistance with long-term clarity.

Virtually unbreakable

High optical clarity

Abrasion & wear resistant

Half the weight of glass

UV resistant

Multiple Colors

Applications

  • Storefront security glazing

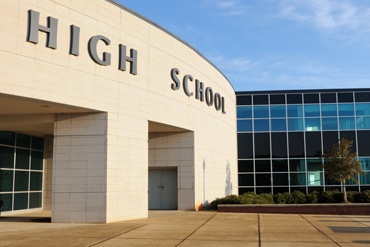

  • School safety glazing

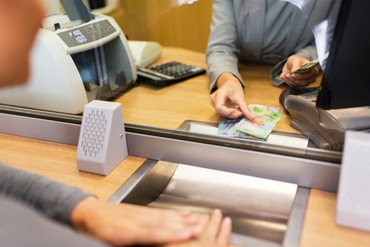

  • Transparent ballistic protection in banks

  • Prevent smash & grab

  • palgard palshield
    Government buildings

  • Law enforcement facilities

PALSHIELD Options

  • Forced Entry Products

    More info>

    Forced Entry

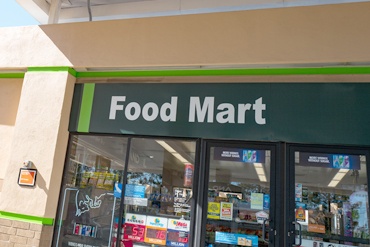

    The PALSHIELD line of forced entry protection panels come in 2 plies and 3 plies. Ranging from 9.5mm to 19mm thick, these clear security panels comply with ASTM F1915-05 – Security Grade Level 1 and ASTM F1915-05 – Security Grade Level 2.

    Used to prevent unauthorized entrances and exits, while providing unobstructed visibility to threats.

    Applications

    • Schools, universities
    • Prisons, detention centers
    • Visitation centers
    • Bank teller windows
    • Medical facilities
    • Government buildings
  • Ballistic Products

    More info>

    ballistc grade

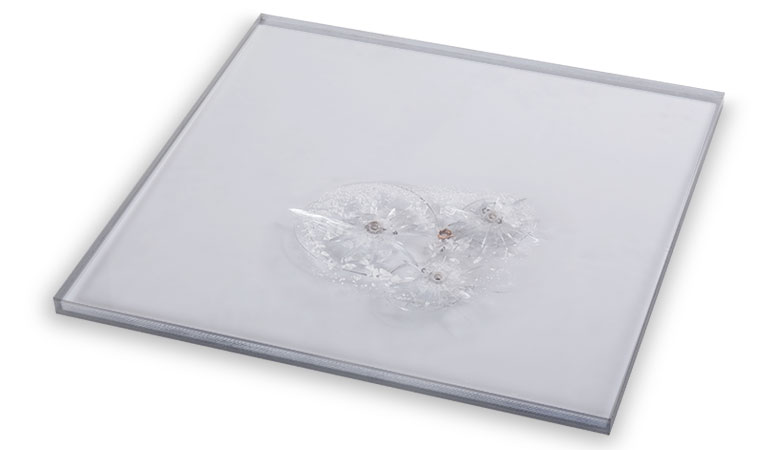

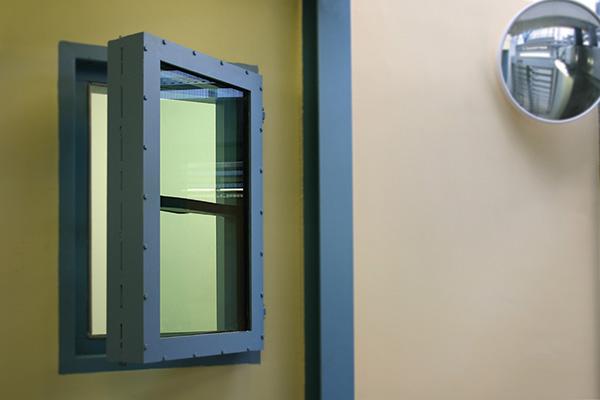

    The PALSHIELD line of ballistic resistant panels comes in 3 and 4 plies. Ranging from 19mm to 32mm thick, PALSHIELD clear bulletproof sheets comply with UL 752 Level 1, Level 2, Level 3, and Level 6. Ideal for security glazing.

    applications:

    • Banks and government facilities
    • Public institutions
    • Retail storefronts
    • Gas stations and convenience stores
    • Drive-up windows, ticket booths
    • Schools and other educational facilities

Downloads

File name
Size
Flat Sheet Line Card (SP).pdf Flat Sheet Line Card (SP).pdf
1 MB
Flat Sheets Line Card (EN).pdf Flat Sheets Line Card (EN).pdf
5 MB
PALSHIELD Sales Sheet (ENG).pdf PALSHIELD Sales Sheet (ENG).pdf
2 MB
PALSHIELD Sales Sheet (Sp).pdf PALSHIELD Sales Sheet (Sp).pdf
2 MB
PALGARD & PALSHIELD Master Specification.pdf PALGARD & PALSHIELD Master Specification.pdf
48 KB
PALSHIELD Installation Guide (SP).pdf PALSHIELD Installation Guide (SP).pdf
646 KB
PALSHIELD Installation Guide.pdf PALSHIELD Installation Guide.pdf
704 KB
Polycarbonate Care and Maintenance Document.pdf Polycarbonate Care and Maintenance Document.pdf
114 KB
Palram REACH Declaration April 2024.pdf Palram REACH Declaration April 2024.pdf
32 KB
ESR-1893 - March 2025.pdf ESR-1893 – March 2025.pdf
411 KB
PALSHIELD Manufacturer's Limited Warranty.pdf PALSHIELD Manufacturer's Limited Warranty.pdf
96 KB
Palram Americas ROHS Declaration Document.pdf Palram Americas ROHS Declaration Document.pdf
73 KB
Palram Americas Company Overview.pdf Palram Americas Company Overview.pdf
5 MB
Palram's Concepts for Safer Environments.pdf Palram's Concepts for Safer Environments.pdf
4 MB
Products for Sustainable Building, USGBC LEED Program and Palram Polycarbonate Products.pdf Products for Sustainable Building, USGBC LEED Program and Palram Polycarbonate Products.pdf
1 MB

Product Details

  • Dimensions
  • Colors
  • Technical Data
Dimensions

Product Availability

Forced Entry ProductsProtection LevelThickness in. (mm)Plieslbs./ft² (kg/m²)Light Transmission
Palshield FE 375ASTM F1915-05 - Security Grade Level 2
HPW 0500.03 Level A ballistics (.38 special)		.375" (9.5mm)22.4 (11.7)86%
Palshield FE 500ASTM F1915-05 - Security Grade Level 2
HPW 0500.03 Level A ballistics (.38 special)		.500" (12.7mm)33.3 (16.1)83%
Palshield FE 750ASTM F1915-05 - Security Grade Level 1
HTW 0500.03 Level B Balllistics (9mm)		.750" (19mm)34.9 (23.9)77%
Ballistic ProductsProtection LevelThickness in. (mm)Plieslbs./ft² (kg/m²)Light Transmission
Palshield UL1-750*UL 752 Level 1† - 9mm 3 shots.750" (19mm)34.9 (23.9)88%
Palshield UL2-1000UL 752 Level 2†† - .357 3 shots1.0" (25.4mm)46.5 (31.7)72%
Palshield UL3-1250UL 752 Level 3†† - .44 Mag 3 shots ASTM F1915-05 Security Grade Level 1 ASTM 1233-08 Class V (Body)1.25" (32mm)48.1 (39.5)67%
Palshield UL6-1250*UL 752 Level 6†† - High Velocity 9mm 5 shots Supplemental shotgun 1 shot1.25" (32mm)48.1 (39.5)78%

* Contains Acrylic

† Tested by an accredited independent lab according to UL specs.

†† UL-listed – File #BP21163

Colors

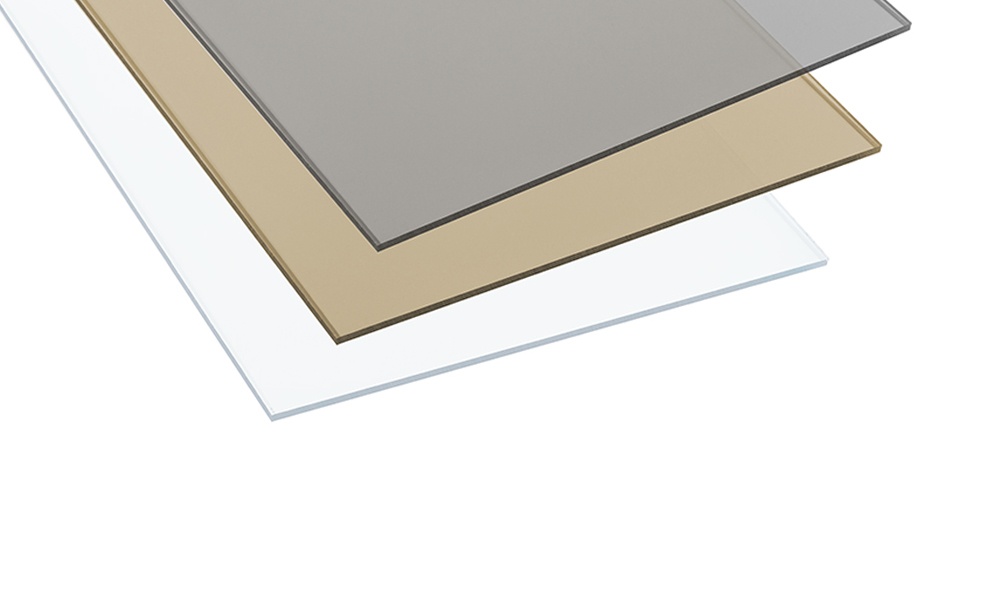

ColorsClear, Bronze, Grey
Technical Data

Regulatory Code Compliance Certification

OrganizationStandard
Classification
ANSI
Z97.1-09
Approved Impact and Weathering
CPSC
16 CFR 1201
Category I or II
Testing Std. Reference
Standard and Year
Title / Description
ASTM
F1233-08
Standard Test Method for Security Glazing Materials and Systems
ASTM
F1915-05
Standard Test Method for Glazing for Detention Facilities
HP White
TP-0500-.03
Transparent Material for Use in Forced Entry or Containment Barriers
UL
752
Bullet Resistant Equipment
