PALCLAD® PRO

Solid PVC Panels for Interior Wall Cladding Projects

PALCLAD™ PRO PVC interior wall cladding panels are an attractive, cost-effective alternative to Fiberglass Reinforced Plastic (FRP) panels. Unlike FRP panels, PALCLAD PRO contains no fiberglass, is extremely durable, and will not erode or “fiber bloom”, ensuring a sleek, long-lasting surface.

The panels are easy to install and connecting profiles are available. Panels can be glued or mechanically fastened to almost any solid, clean surface, including drywall, concrete block, wood, metal, and more.

If your wall cladding application requires an antimicrobial product, check out PALCLAD™ PRO HYG.

Get FREE Samples of PALCLAD Pro

Construction & ArchitectureConstruction & ArchitectureAgricultureAgriculture

Main Benefits

  • Class A fire rating, self-extinguishing

  • Installer-friendly; no fiberglass particles

  • Easy to thermoform and bend

  • Withstands harsh chemicals and frequent cleaning

  • Impact and scratch-resistant

  • Cracked Ice, attractive smooth, or embossed (haircell) finish

  • Non-toxic, lead free, phthalate free

  • 100% recyclable

  • USDA/FDA Compliant

  • Clean Air Gold Certified; allows for LEED and WELL credits

  • 5 year limited warranty

Typical Applications

  • Public restrooms, locker rooms

  • Commercial kitchens, cafeterias, food processing plants

  • High traffic areas (hallways, lobbies)

  • Offices, waiting rooms

  • Car wash, wash down areas

  • Corrosive environments

  • Animal confinement, kennels, veterinary clinics

  • Specialized HVAC applications

Class-A Fire Rated Interior Cladding

Class-A Fire Rated Interior Cladding

Finish Options

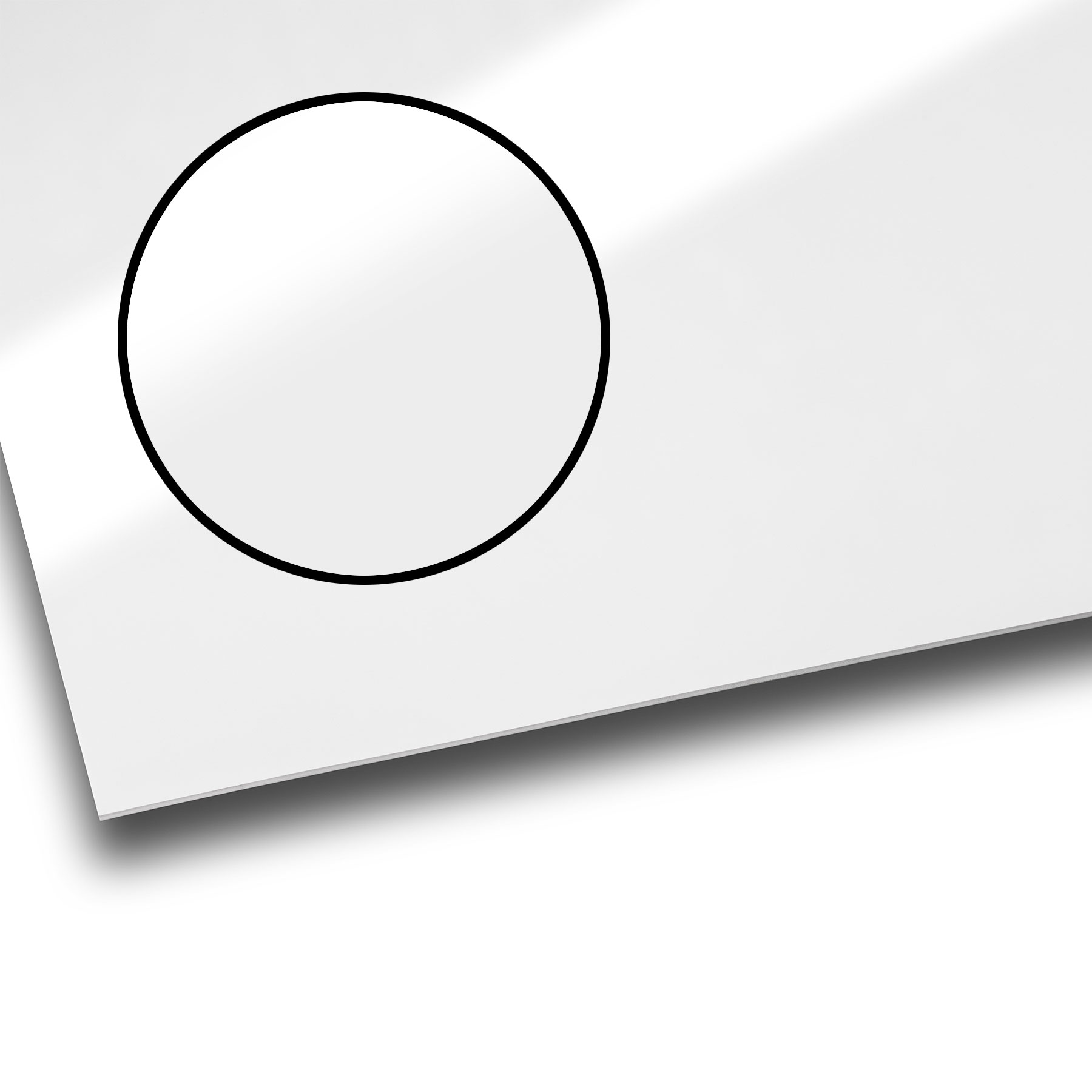

Smooth
Smooth

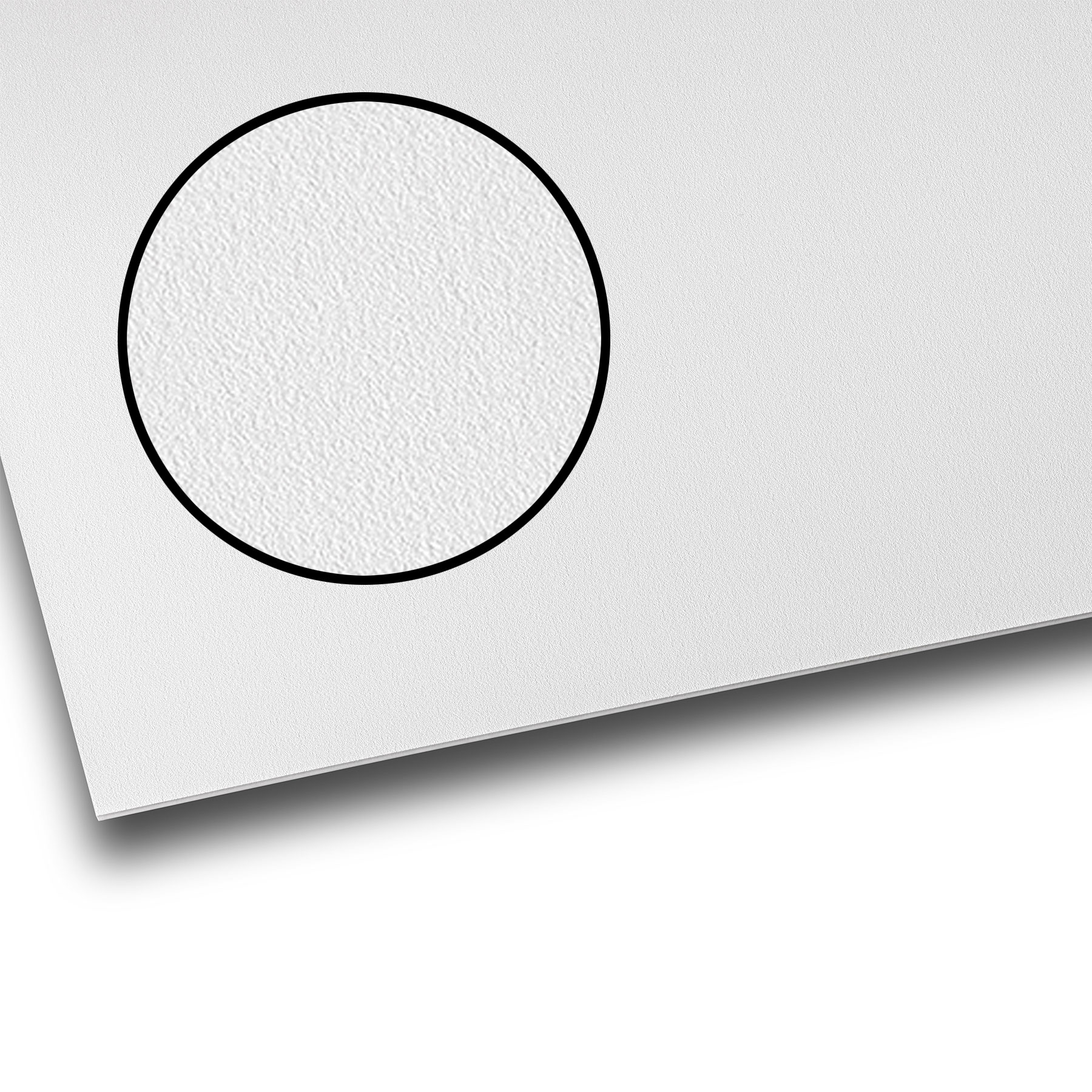

Haircell/Embossed
Haircell/Embossed
Cracked Ice
Cracked Ice

DOWNLOADS

File name
Size
Palram REACH Declaration April 2024.pdfPalram REACH Declaration April 2024.pdf
32 KB

Product Details

Dimensions

Dimensions

ThicknessWidth X Length
2.0 mm4' X 8' and 4' X 10'
(Smooth & Embossed/Haircell Finishes)
2.3 mm4’ x 8’, 4’ x 10’
(Cracked Ice Finish)

Special colors and other thicknesses available, subject to minimum quantities

Colors & Finishes

Colors

ColorsWhite*

* Other colors are available on special order, subject to minimum quantity.

Physical Properties

PropertyConditionsASTM MethodUnits - SIValue
Physical
DensityD-792g/cm³1.4
Mechanical
Tensile strength at yield10 mm/minD-638MPa50
Tensile strength at break10 mm/minD-638MPa>80
Tensile Modulus of Elasticity1 mm/minD-638MPa2900
Flexural Modulus1.3 mm/minD-790MPa2700
Flexural Strength1.3 mm/minD-790MPa80
Impact Falling Weight3 mm SheetISO 6603/1 E50J95
Rockwell HardnessD-785R scale97R
Thermal
Service Temperature°C-10 to +50
Heat Deflection TemperatureLoad: 1.82 MpaD-648°C65 - 68
Coefficient of Linear
Thermal Expansion		D-696cm/cm °C6.7 x 10-⁵
Thermal ConductivityC-177W/m K0.15

Technical Data

Flammability

StandardClassification
ASTM E 84Class A
En 13501B, s3, d0

EARN AN HSW & IDCEC CREDIT FAST

We've developed a CEU course where you can learn about the performance, specifications, & installation considerations of PVC wall cladding systems. The course will explore specific applications for interior PVC cladding and review installation best practices to ensure a successful project. Register today!

EARN AN HSW & IDCEC CREDIT FAST
