SUNLITE ECLIPSE Light Deprivation Solution

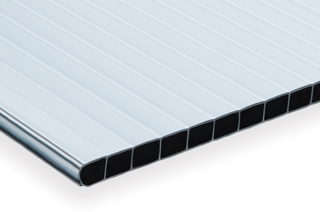

REFLECTIVE OPAQUE MULTIWALL POLYCARBONATE SHEETS FOR LIGHT DEPRIVATION APPLICATIONS

Engineered for complete light deprivation, with a highly reflective, white outer skin and a black core, SUNLITE® Eclipse ensures 0% light transmission. The reflective surface maximizes available natural light from your greenhouse cover and from your artificial lighting system. Its multiwall design helps conserve energy and maintain consistent temperatures inside the structure

SUNLITE® ECLIPSE is a lightweight, easy-to-install, insulated panel that can be used in a wide range of climates. It is a durable solution for cannabis greenhouse, processing and storage areas and more.

Engineered for Side & End Walls

Main Benefits

  • Allows complete light deprivation
  • White, reflective interior for optimized photosynthesis efficiency
  • Excellent thermal insulation
  • Impact resistance
  • Light weight – Easy to handle
  • Weather and UV resistant
  • Rigid, yet capable of cold forming to an arch
  • Wide service temperature range (-40°C to 120°C)
  • 10 Years warranty for breakage and for light deprivation

Typical Applications

  • Sides & Walls for:
  • Commercial greenhouse
  • Aquaculture applications
  • Packing and holding areas

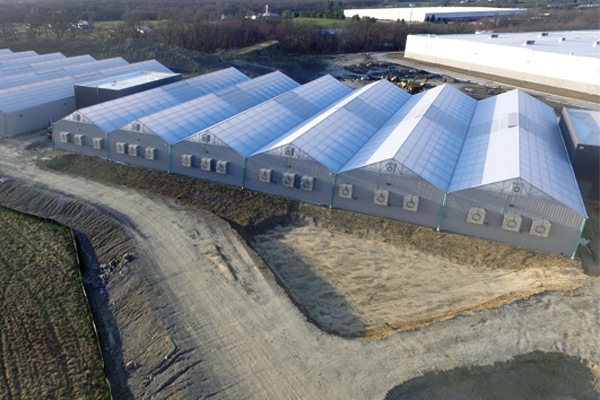

Light Deprivation Solution for Cannabis Cultivation

Due to the recent developments in the legalization of recreational and medical cannabis, growers are faced with several growing challenges. Commercial cultivation of cannabis requires full control over the day and night cycles. During daylight cycles, growers in the commercial market strive for maximal light transmittance and high light diffusion factors. Opaque walls are desirable for security and discretion, as well as for light deprivation control.

Palram provides a suite of solutions for cannabis growers with specific high-light transmission and diffusion panels for the roof; and opaque, reflective multiwall for greenhouse walls and gables.

Light Deprivation Solution for Cannabis Cultivation

PRODUCT DETAILS

Colors & Finishes

Colors, Light Transmission* (LT) and Solar Heat Gain Coefficient* (SHGC)

Product / ProfileColorLight Transmission
Twin-Wall 8mmwhite / black / white0

Physical Properties

Typical Physical Properties

PropertyConditions- (U.S. Customary)ASTM MethodUnits – SI- (U.S. Customary)Value- (U.S. Customary)
Physical
DensityD-1505g/cm3 (lb/ft3)1.2 (75)
Water Absorption24 hr. @ 23°CD-570%0.15
Mechanical
Tensile strength at yield10 mm/min (0.4 in./min)D-638MPa (psi)62 (9,000)
Tensile strength at break10 mm/min (0.4 in./min)D-638MPa (psi)65 (9500)
Elongation at yield10 mm/min (0.4 in./min)D-638%6
Elongation at break10 mm/min (0.4 in./min)D-638%110
Tensile Modulus of Elasticity10 mm/min (0.4 in. /min)D-638MPa (psi)2,378 (345,000)
Flexural Modulus1.3 mm/min (0.05 in./min)D-790MPa (psi)2,378 (345,000)
Flexural Strength at Yield1.3 mm/min (0.05 in./min)D-790MPa (psi)93 (13,500)
Notch Impact Strength Izod23°C (73°F)D-256J/m (ft·lbf/in.)800 (15)
Notch Impact Strength Charpy23°C (73°F)D-256J/m (ft·lbf/in)800 (15)
Impact Falling Weight3 mm (0.12 in.) SheetISO-6603/1bJ (ft·lbf)40-400(30-295)
Rockwell HardnessD-785R scale / M scale125 / 70
Abrasion (Taber Process)100 Cycles, CS-10S Wheel, 500gD-1044% HazeN/A
Compressive Strength1.3 mm/min (.05 in./min)D-695MPa (psi)N/A
Compressive Modulus1.3 mm/min (.05 in./min)D-695MPa (psi)N/A
Shear strength at Yield1.3 mm/min (.05 in./min)D-732MPa (psi)N/A
Shear strength at Break1.3 mm/min (.05 in./min)D-732MPa (psi)N/A
Shear Modulus1.3 mm/min (.05 in./min)D-732MPa (psi)N/A
Thermal
Long Term Service Temperature°C (°F)-75 to +100 (-175 to +212)
Short Term Service Temperature°C (°F)-75 to +120 (-175 to +250)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)132 (270)
Vicat Softening TemperatureLoad: 1 kg (2.2 lb)D-1525°C (°F)149 (300)
Coefficient of Linear- Thermal ExpansionD-69610-5/°C (10-5/°F)6.5 (3.6)
Thermal ConductivityC-177W/m°K (Btu-in./hr-ft2-°F)Varies w/ Thickness
Specific Heat CapacityC-351kJ/kg°K (Btu/lb°F)N/A

Technical Data

Flammability

CountryStandardClassification*
United StatesASTM D-635CC-1
United StatesASTM E-84Class A

Flammability Notes    *Classification Is Dependent On Product Thickness.

Related Products

SUNLITE® PLUS
SUNLITE® PLUS

Multiwall Polycarbonate Sheet
SUNTUF® PLUS
SUNTUF® PLUS

Corrugated Polycarbonate Sheet

What do growers want?

During daylight cycles, Cannabis greenhouse growers strive for the optimization light transmission and light diffusion.

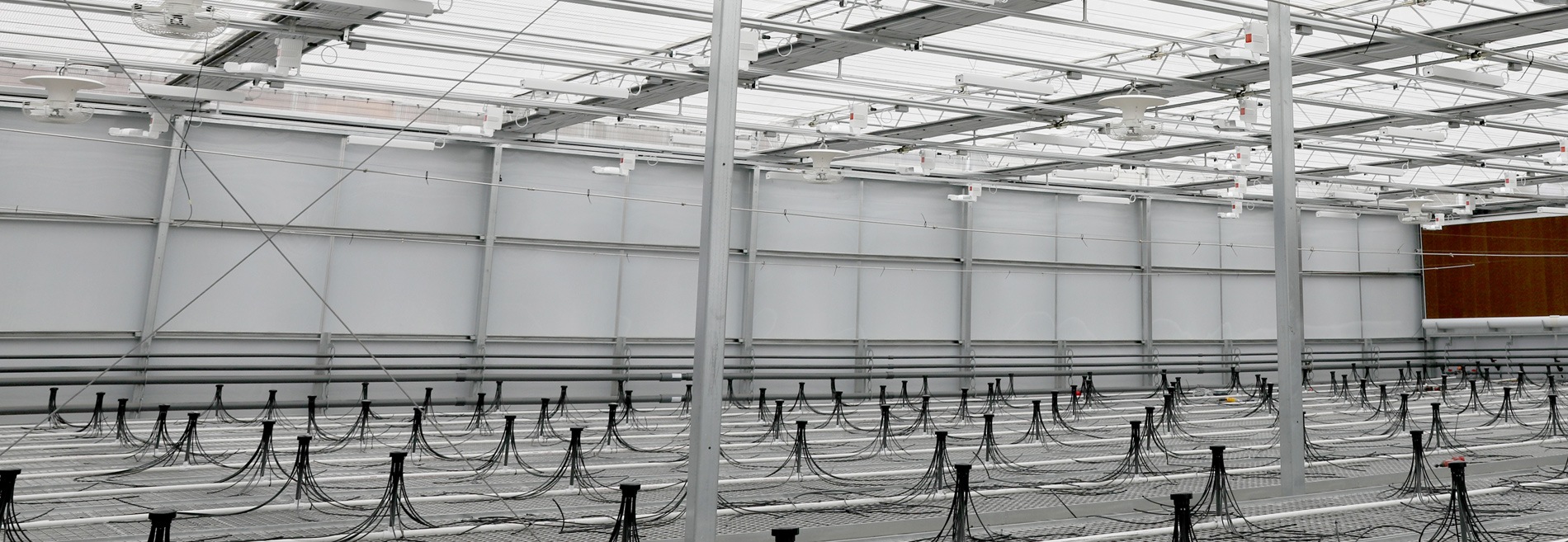

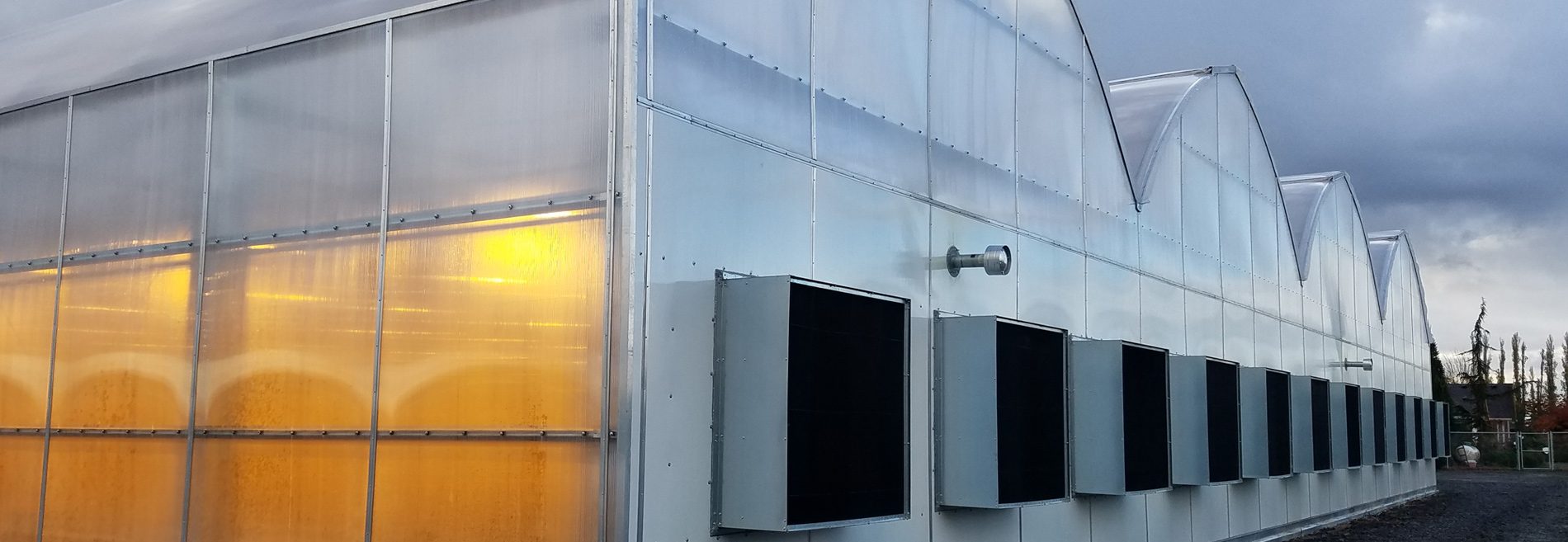

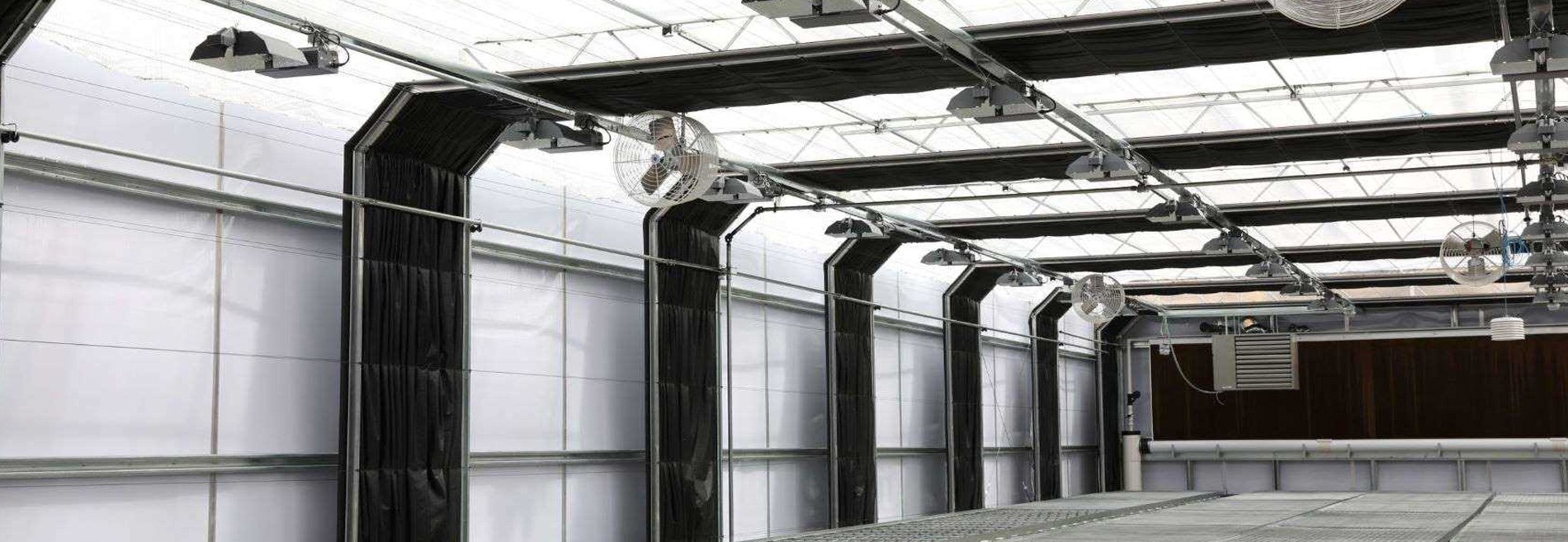

Opaque walls are desirable for light deprivation cycles and are commonly used at greenhouse sides & end walls.

Collaborating with the world's largest growers and greenhouse builders, we have developed and now provide a package of solutions that wraps the entire growing facility and provides a safe, protected and controlled growing environment.

Learn more about our solutions for cannabis greenhouse

What do growers want?
