PALGARD® ABRASION-RESISTANT POLYCARBONATE

Technically advanced surfaces for lasting protection and clarity

PALGARD offers polycarbonate mechanical and physical properties, with upgraded abrasion and chemical resistance.
PALGARD hard coated polycarbonate remains clear and scratch-free in applications with high levels of wear and tear. Scratch resistant polycarbonate is ideal for protective shielding or safety glazing for machinery and as highway acoustic sound barriers. PALGARD wear resistant plastic is also ideal for security glazing or clear railing at service counters and public transport.

PALGARD LeafletPALSUN Technical Guide

Benefits

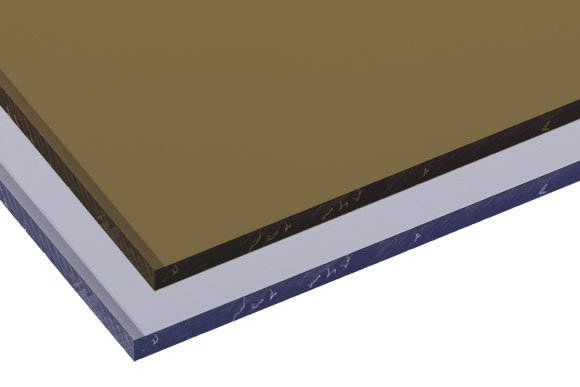

The hard coated surfaces of PALGARD polycarbonate provide superior chemical and abrasion resistance.

Abrasion & Wear Resistant

High Optical Clarity

Chemical & Water Resistant

Acoustic Insulation

Impact Resistant

Strength & Durability

Applications

PALGARD is ideal for glazing machinery, vehicles, railings, and windows.

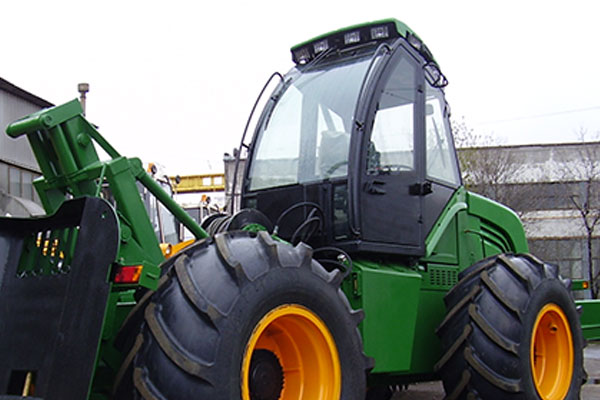

  • Agriculture and construction machinery glazing

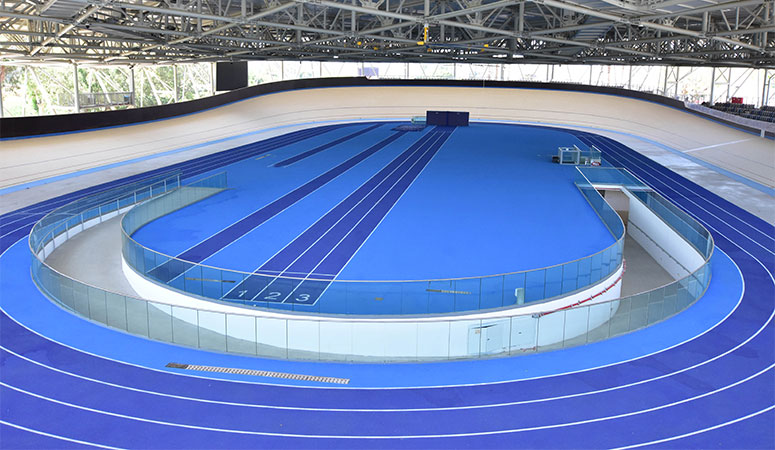

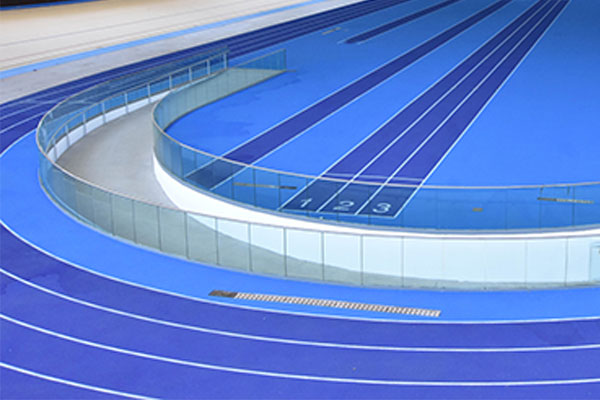

  • Railing safety glazing

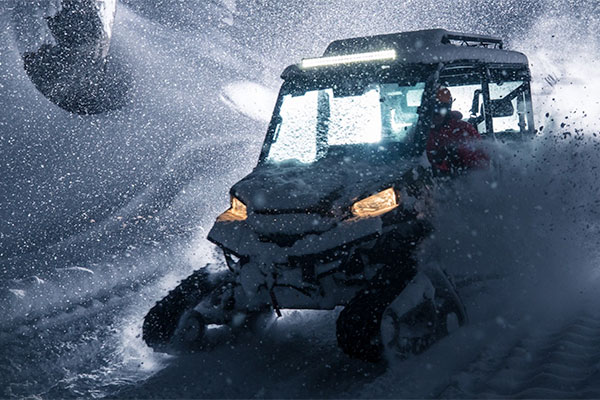

  • RV & Specialty Vehicle protective glazing

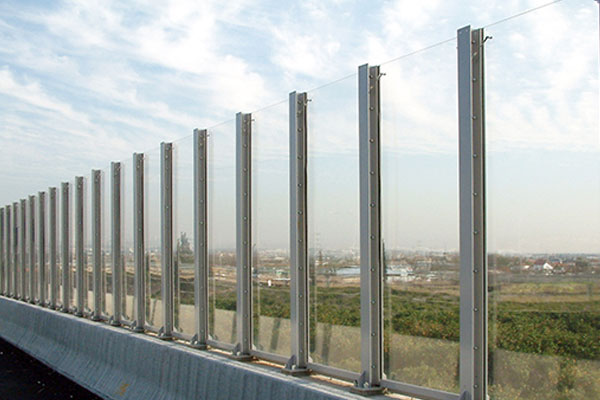

  • Transparent acoustic barriers

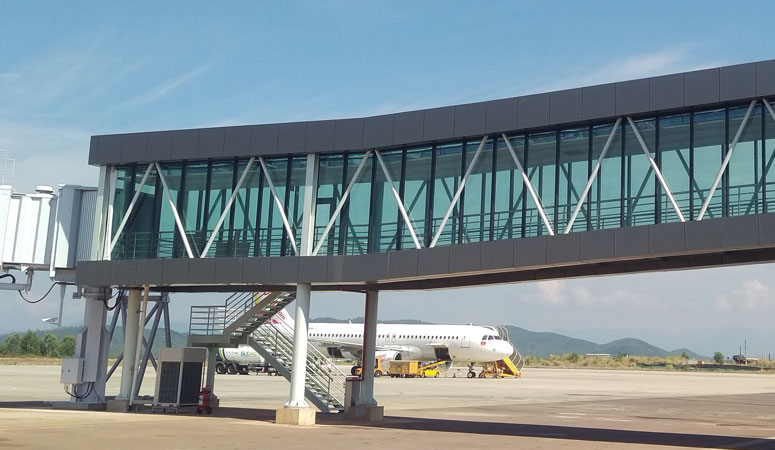

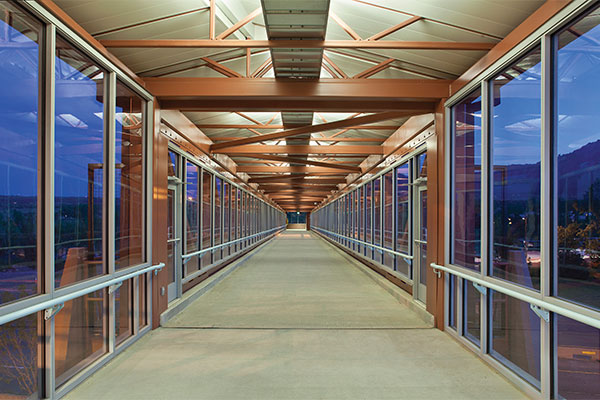

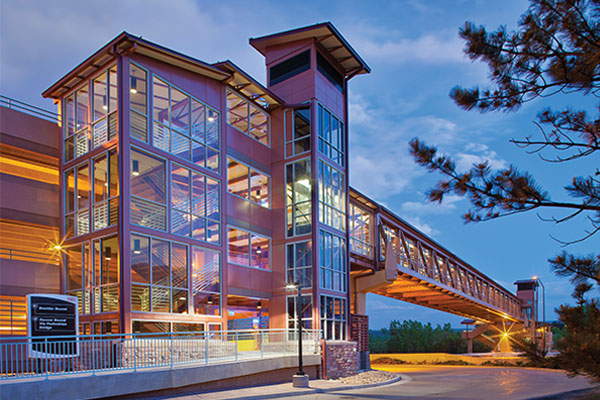

  • Bridge glazing for roads and highways

  • Anti Scratch Safety Glazing

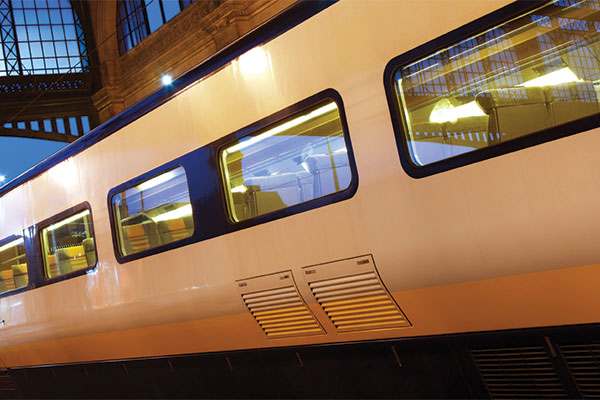

  • Driver protection and mass transit windows

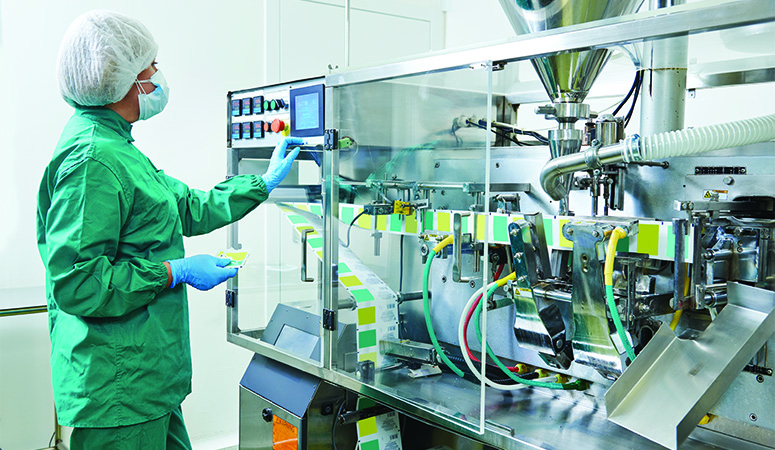

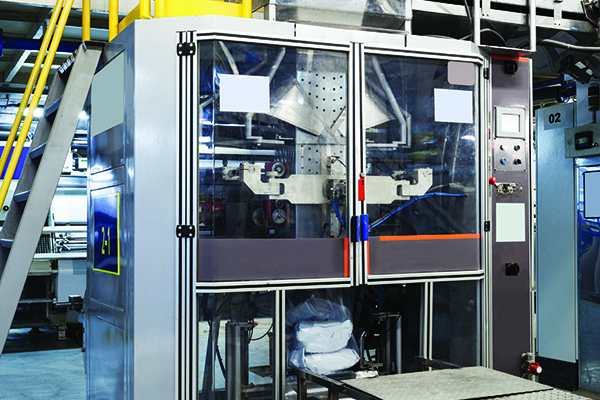

  • Transparent machine guards

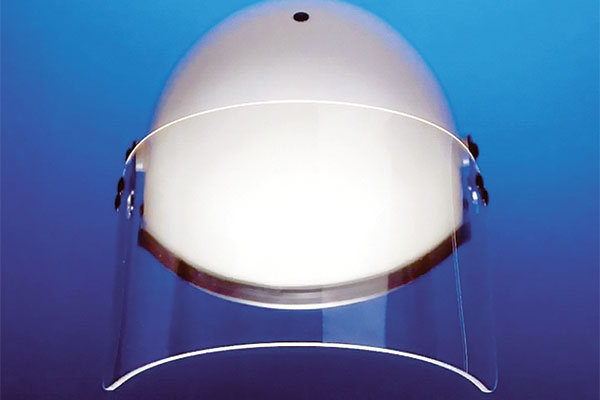

  • Wear resistant face shield glazing

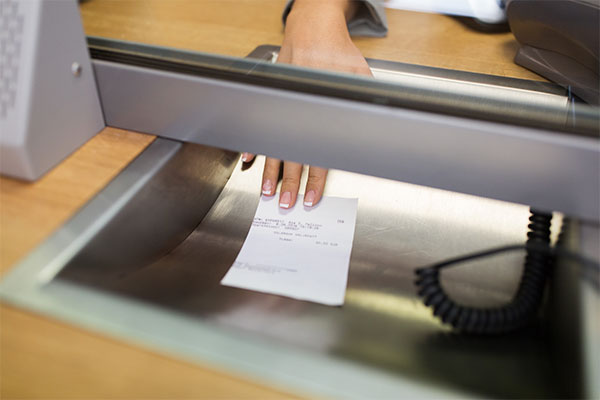

  • Protective guards and shielding

Downloads

File name
Size
PALGARD Leaflet (En).pdf PALGARD Leaflet (En).pdf
2 MB
PALGARD Care and Maintenance (En).pdf PALGARD Care and Maintenance (En).pdf
50 KB
PALSUN Technical Guide (En).pdf PALSUN Technical Guide (En).pdf
1 MB
BioBase Polycarbonate Products (En).pdf BioBase Polycarbonate Products (En).pdf
870 KB
Flat Sheets Application Catalog (En).pdf Flat Sheets Application Catalog (En).pdf
5 MB
Palram Product Safety Data Sheet Polycarbonate (En).pdf Palram Product Safety Data Sheet Polycarbonate (En).pdf
111 KB

FAQ

Show FAQs
How do I curve the polycarbonate to follow the façade curve?
+
All Palram polycarbonate products can be cold bent onsite during installation, subject to a minimum radius. The radius varies based on the chosen product. For flat sheets such as PALSUN & SUNLITE, the rule-of-thumb for the minimum radius is the thickness multiplied by 200. Please check the Palram catalog for more detailed specifications.
SUNGLAZE – Old SUNLITE® PLUS SUNTOP® PUBL — New Product Page Example SUNTUF DIY SUNTUF BH EZ Glaze SUNTUF ZigZag
How do I specify the required thickness of the polycarbonate glazing material?
+
The recommended thickness of the polycarbonate glazing material is based on factors such as wind & snow load, panel size, and boundary conditions. Visit the Palram website for access to calculators that can help you determine the recommended thickness.
SUNGLAZE – Old SUNLITE® PLUS SUNTOP® PUBL — New Product Page Example SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
How do I reduce the heat build-up coming from the façade into the building?
+
In order to reduce heat build-up through the façade, Palram strongly recommends the use of its tinted SolarSmart™ panels. SolarSmart™ tints can be implemented in all Palram polycarbonate products. For more information, reference the Palram SolarSmart™ technology page.
SUNGLAZE – Old SUNLITE® PLUS PUBL — New Product Page Example SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
How do I create a double skin glazing solution for façades and curtain walls?
+
Flat solid or multiwall sheets can be glazed in double skin applications using standard aluminum curtain wall profiles and EPDM gaskets. The SUNPAL system can be installed in a double skin application with a special aluminum profile provided by Palram.
SUNGLAZE – Old SUNLITE® PLUS PUBL — New Product Page Example
Can flat solid polycarbonate be installed in a similar manner to glass in curtain wall applications?
+
PALSUN can be installed with standard curtain wall aluminum glazing profiles and EPDM gaskets (similar to glass), or spider fixing spaced with approximately 400 mm centers. However, it cannot be used with structural silicone and PALGARD (PALSUN) with anti-scratch coating is the recommended substitute in this case.
SUNGLAZE – Old
Should products be pre-dried before thermoforming?
+
This depends on the production date and storage conditions of the product before thermoforming. It is recommended to check the product before thermoforming is attempted.
SUNGLAS™ SUNGLAZE – Old SUNLITE® PLUS PALBOARD Terra PALIGHT ReVive
Is the PE film suitable for thermoforming applications?
+
Most of Palram’s products that are delivered with PE film covering are suitable for thermoforming. In general, we recommend using clear PE and not printed PE.
SUNGLAZE – Old SUNLITE® PLUS PALBOARD Terra PALIGHT ReVive
What is the minimum allowed bending radius of polycarbonate?
+
The minimum allowed bending radius of the polycarbonate is 200 times the thickness of the sheet, for example, a 2 mm sheet has a minimum 400 mm bending radius.
SUNGLAZE – Old SUNLITE® PLUS SUNTOP® SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
Can the percentage of light transmission be controlled? I need a lot of light but I need it to be diffused.
+
Palram offers various LT% parameters – from 0% to 90%. In addition, we offer a color called a “diffuser” that allows 85% of the light in while diffusing it by 100%. The result is a light-transmitting panel that is not transparent but is highly translucent.
SUNGLAS™ SUNGLAZE – Old SUNLITE® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
How do I clean the polycarbonate?
+
  • Never use abrasive or high alkaline cleaners on any Palram polycarbonate products.
  • Do not leave cleaners on Palram polycarbonate for extended periods of time. Rinse immediately with cold, clean water.
  • Do not apply cleaners in direct sunlight.
  • Never use sharp objects, squeegees or razors on polycarbonate.
  • Do not clean with gasoline.
  • Always practice safety first and never step directly on a polycarbonate panel.
  • Always test cleaners in a small inconspicuous area prior to cleaning the entire panel to ensure against adverse results.
  • Avoid allowing the pressure washer spray tip to come too close to the panel. Pressure washers often have enough pressure at the spray tip to penetrate or tear the panel.
  • Avoid dry cleaning as sand and dust particles clinging to the exterior of the panels may scratch the surface.
SUNGLAZE – Old SUNLITE® PLUS SUNTOP® SUNTUF DIY SUNTUF BH EZ Glaze SUNTUF ZigZag
What is the meaning of Shading Coefficient (SC)?
+
Shading coefficient (SC) is a parameter that compares transparent and translucent materials with clear 3 mm glass with 87% LT ׂ(light transmission). The lower the value, the more convenient it is to stay under the material on warm, sunny days. In architectural projects, the SC should usually be between 0.3 to 0.5.
SUNGLAS™ SUNGLAZE – Old SUNLITE® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
When should I specify a matte surface finish for the polycarbonate?
+
A matte surface finish is good if you want to avoid glare within your surroundings.
SUNGLAZE – Old SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
How do I determine the color, Light Transmission (LT) and haze properties of polycarbonate?
+
This decision depends on the application – some of the colors are transparent and some are translucent. If a see-through material is needed, then haze should be smaller than 1% and the LT% should be based on the illumination design. If a translucent effect is needed, then the haze should be 100% and the LT% based on the chosen color.
SUNGLAZE – Old SUNLITE® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
Will polycarbonate light transmittance deteriorate over time?
+
PALRAM’s polycarbonate products are shielded with a UV protection layer that guards against photodegradation, yellowing, and brittleness. This protects the sheets from the harmful impact of UV radiation and helps to maintain light transmittance and quality for many years. Our products come with a 10-year warranty against loss of light transmittance. Upon special request, we can provide an enforced UV protection layer with a longer warranty.
SUNGLAZE – Old SUNLITE® PLUS SUNTUF DIY EZ Glaze SUNTUF BH SUNTUF ZigZag
