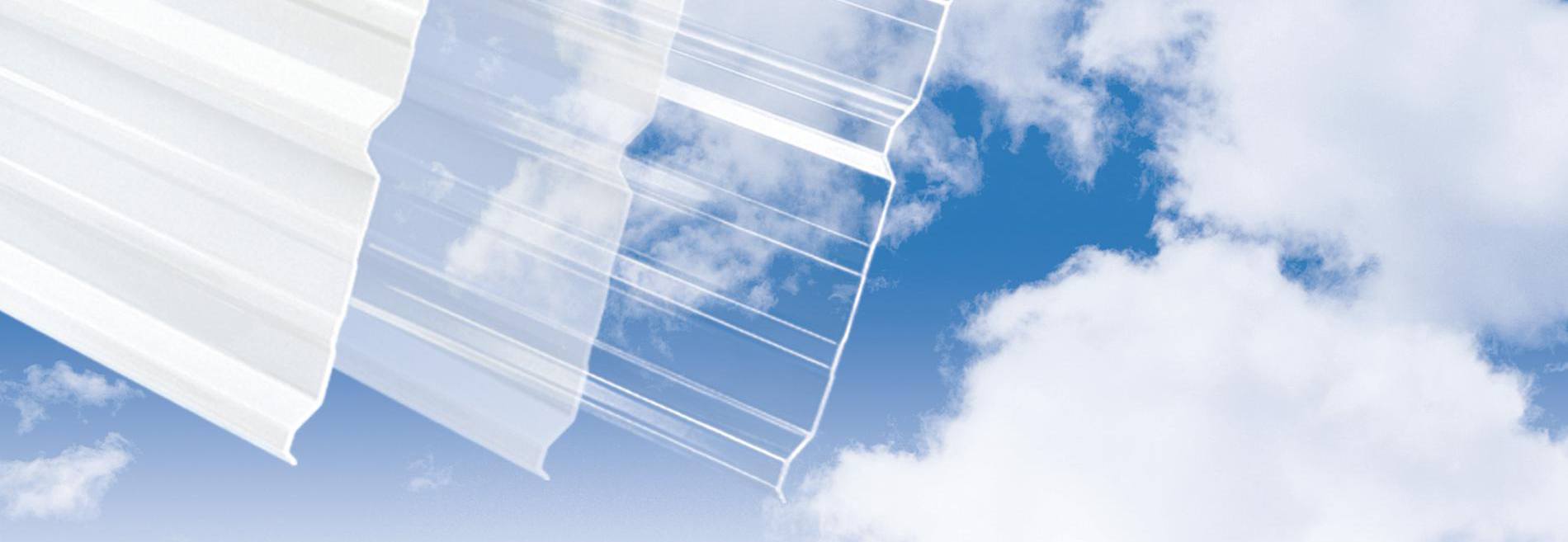

SUNTUF® ROOFING & SKYLIGHT PANELS

Corrugated Polycarbonate Sheets for Roofing, Skylights & Sidelights

Designed to meet complex engineering challenges, SUNTUF corrugated polycarbonate sheets are ideal for industrial roofing and cladding, and for commercial skylights and daylights.
SUNTUF offers all the unique properties of polycarbonate: mechanical robustness, durability, light transmission, UV protection, and strength-to-weight ratio. Unlike corrugated metal sheeting and reinforced glass panels, SUNTUF installs quickly and easily, and maintains its appearance and features for years.

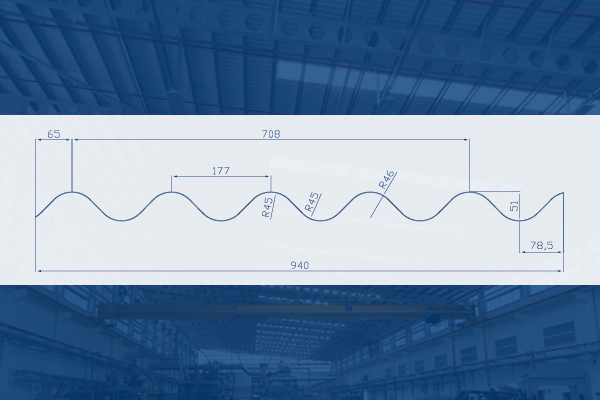

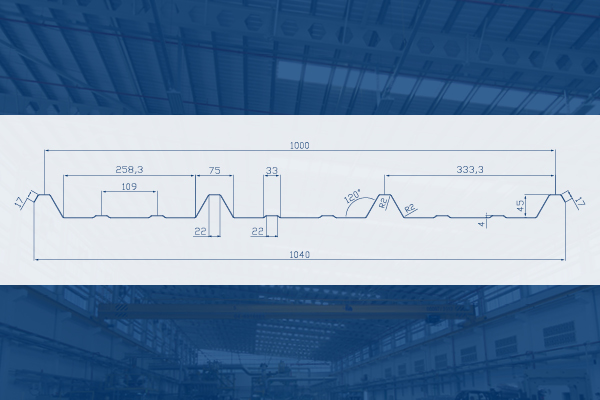

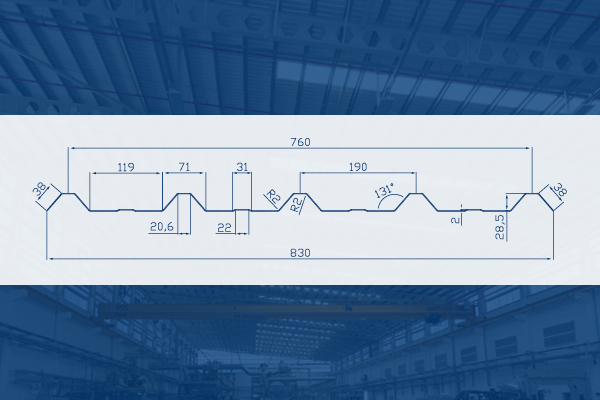

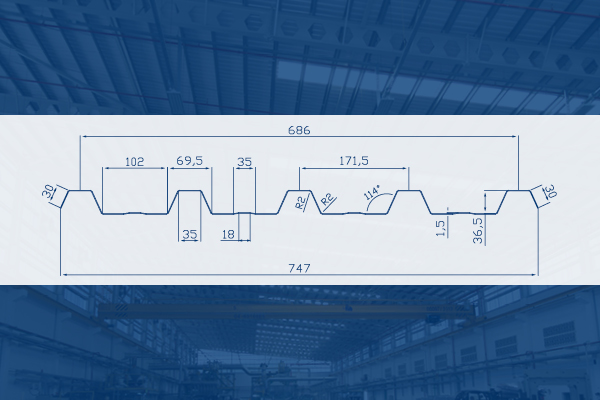

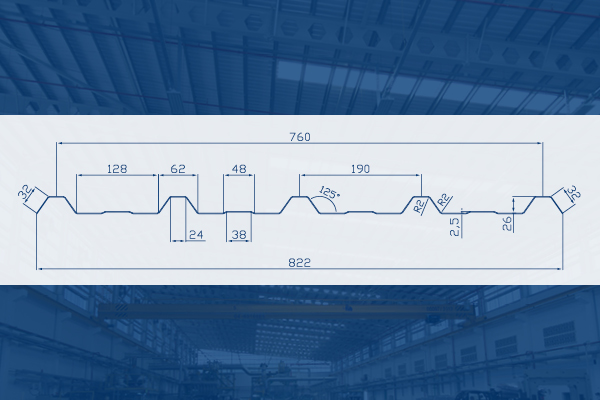

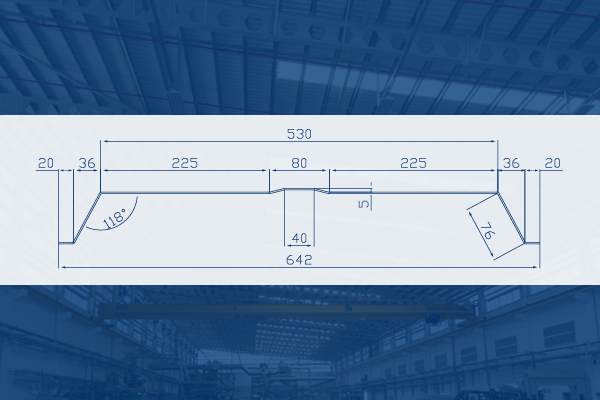

SUNTUF polycarbonate profiles can be adapted to match any corrugated metal profile structure using Palram MetalMatch™ technology. This makes daylighting industrial and commercial spaces quick and easy.

Product videoMetal Match

Benefits

UV protection, durability, and light transmission of up to 90% are some of the benefits of polycarbonate SUNTUF roofing

Lightweight & easy
to install

Hail & impact resistant

Balance shade & daylight

Protects against
UV radiation

High fire rating

Wide service temperature range

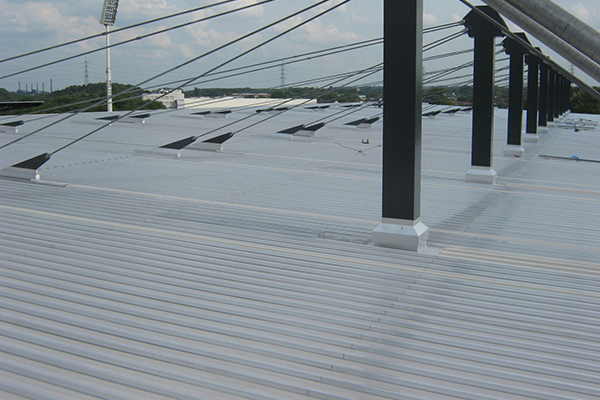

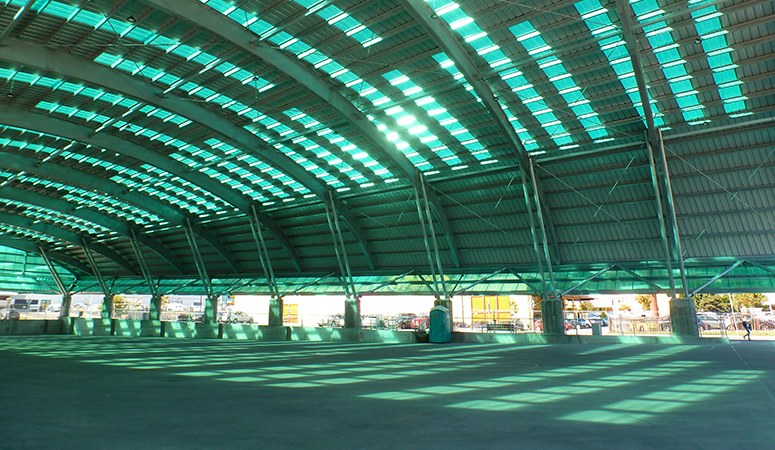

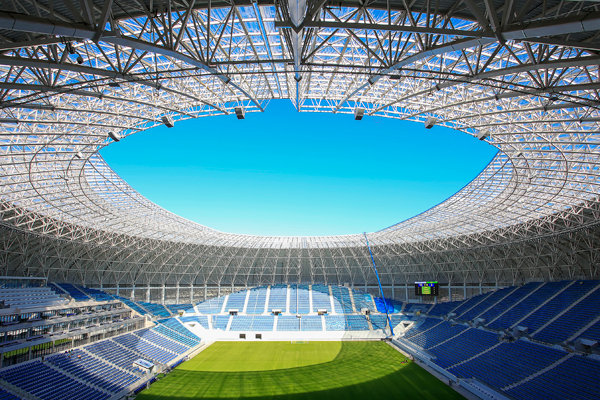

Applications

SUNTUF polycarbonate sheets is the optimal roofing & skylight solution.

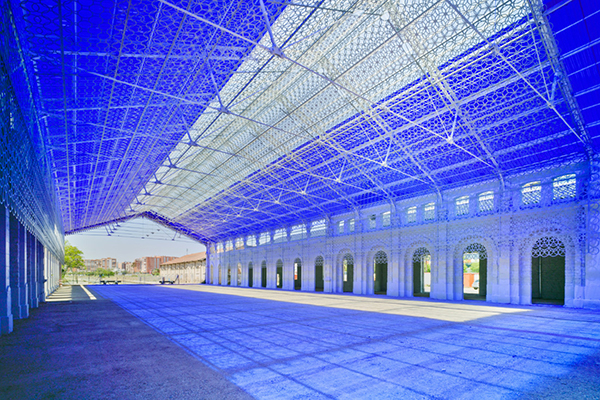

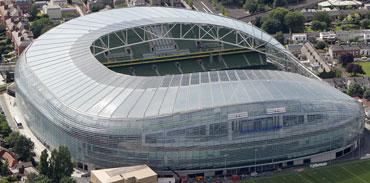

  • Polycarbonate panels for advanced architecture

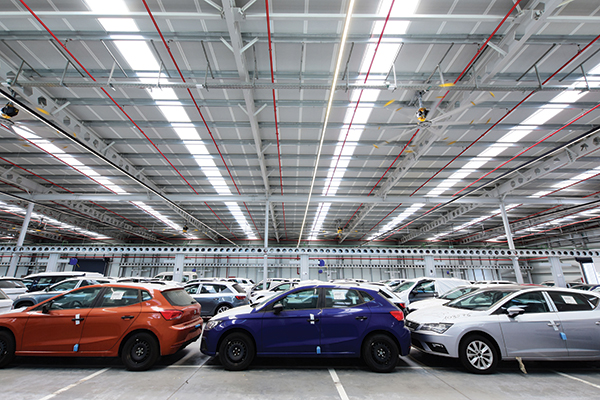

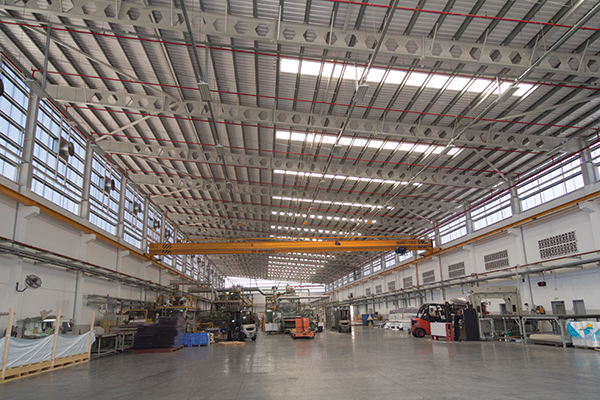

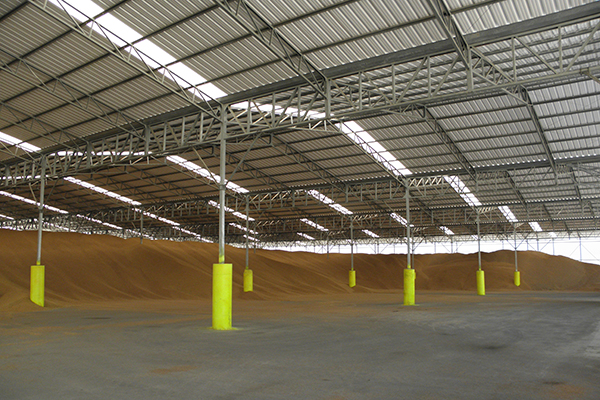

  • Industrial daylight systems

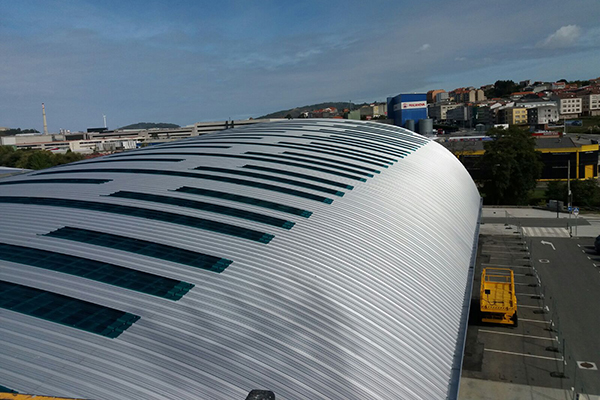

  • Daylight for corrugated metal with polycarbonate panels

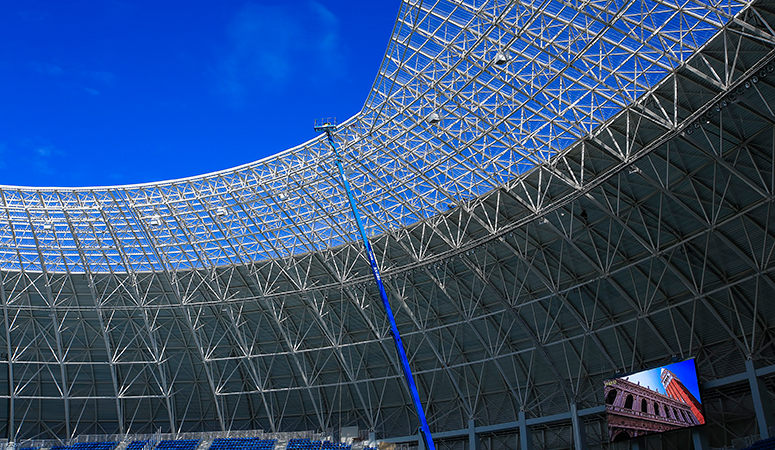

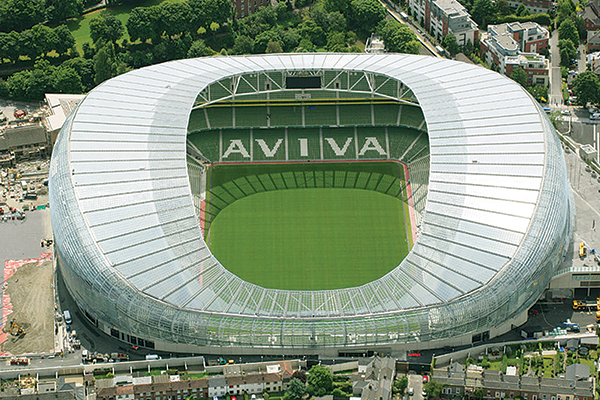

  • Wide span canopies

  • Daylights for insulated metal panels

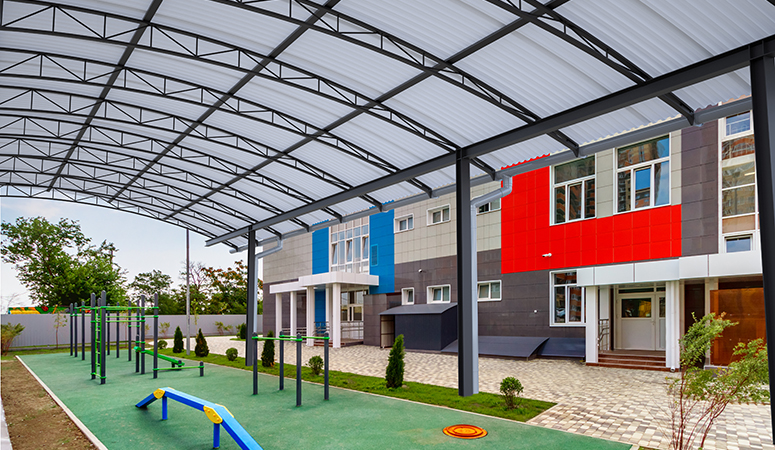

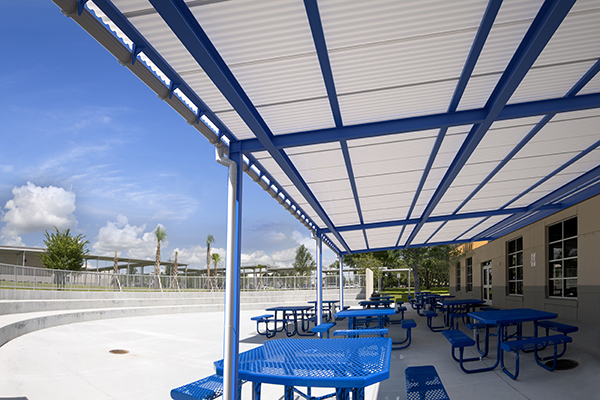

  • Awnings and canopies

  • Roofing with colored polycarbonate sheets

  • Advanced engineering roofing solutions

  • Polycarbonate roof sheeting

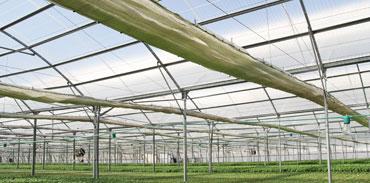

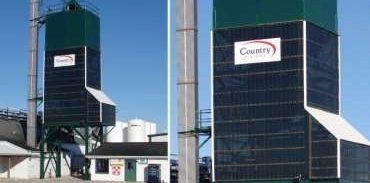

  • Agriculture roofing and daylighting

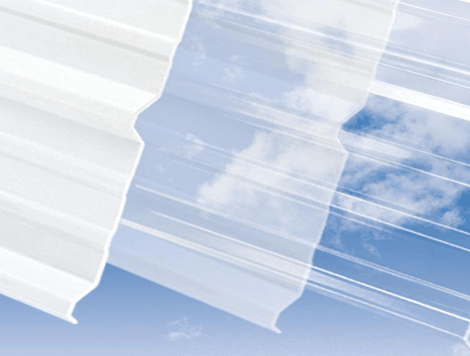

Color Swatch

Plan ambient daylighting using SUNTUF Diffuser, create vivid environments with colored polycarbonate sheets, and reduce heat buildup with SolarSmart® tints.
  • Clear

    87% light transmission

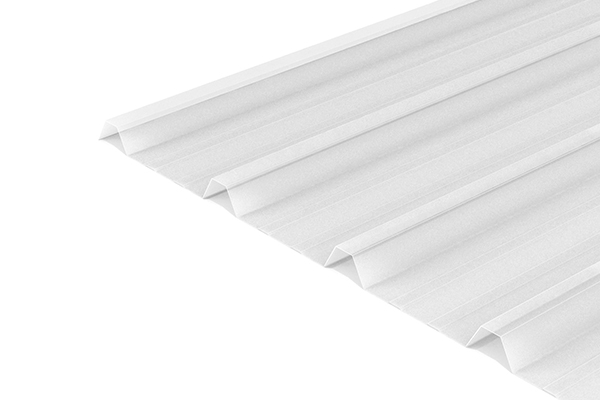

  • White Opal

    45% light transmission

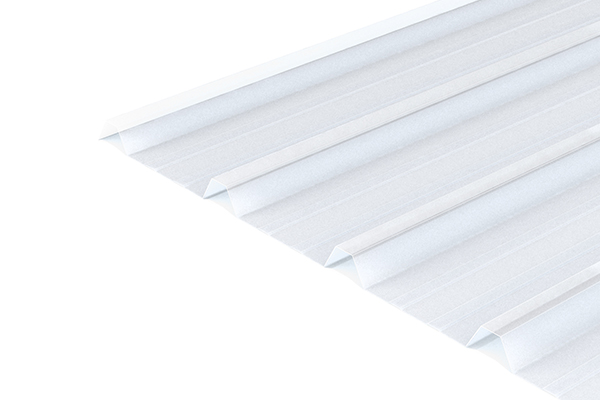

  • White Diffused

    85% light transmission

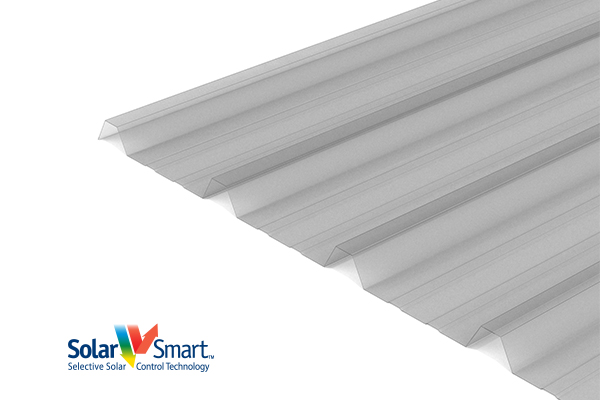

  • Solar Control

    20% light transmission

Videos

SUNTUF corrugated polycarbonate: Video guidance for industrial and commercial use.
  • Install SUNTUF skylights on corrugated metal roof

    A guide to installing industrial rooflights or sidelights using SUNTUF polycarbonate roof panels.

    Watch video>
  • Natural light with SUNTUF

    Natural light with SUNTUF Skylights benefit all.

    Watch video>
  • SUNTUF vs other materials

    Impact resistance, durability, UV protection, and more.

    Watch video>
  • How to cut SUNTUF sheet

    You can tailor and trim on-site, for quality & professional results, follow these guidelines.

    Watch video>

Downloads

File name
Size
SUNTUF Brochure (En).pdf SUNTUF Brochure (En).pdf
5 MB
SUNTUF Construction Brochure (En).pdf SUNTUF Construction Brochure (En).pdf
5 MB
SUNTUF Industrial Leaflet (En).pdf SUNTUF Industrial Leaflet (En).pdf
3 MB
SUNTUF Rooflights Brochure (En).pdf SUNTUF Rooflights Brochure (En).pdf
19 MB
SUNTUF STADIA Brochure (En).pdf SUNTUF STADIA Brochure (En).pdf
4 MB
Palram Finishing Accessories (En).pdf Palram Finishing Accessories (En).pdf
4 MB
SUNTUF Technical Data (En).pdf SUNTUF Technical Data (En).pdf
788 KB
Palram Architectural Projects Portfolio (En).pdf Palram Architectural Projects Portfolio (En).pdf
12 MB
Palram Product Safety Data Sheet Polycarbonate (En).pdf Palram Product Safety Data Sheet Polycarbonate (En).pdf
287 KB
Polycarbonate Care and Maintenance (En).pdf Polycarbonate Care and Maintenance (En).pdf
69 KB

FAQ

Show FAQs
How to Store Polycarbonate Sheets?
+
Polycarbonate sheets are tough and durable and guaranteed to last for years.
Here are some tips for storing polycarbonate sheets to ensure you get the most out of your investment.
Polycarbonate should be stored horizontally on a flat surface, such as a pallet or a shelf.
Ensure that no nails or bolts protrude from the platform. Even small rocks can leave permanent dents and scratches on the sheets.
Stack the largest sheets at the bottom, and the shorter, smaller panels on top.
Avoid stepping on polycarbonate panels and placing heavy or sharp equipment on them.
Store the polycarbonate sheet in a dry, cool, ventilated, shaded area away from direct sunlight.
Keep your stack dry to prevent whitening and water spots.
Avoid covering the sheets with dark films or other heat-absorbing materials.
Cover the panels with an opaque, bright, waterproof cover if you intend to leave them outdoors.
SUNTUF DIY SUNTUF Plus SUNTUF ZigZag SUNTUF STADIA SUNTUF BH EZ Glaze PALGARD PALSUN PALSHIELD SUNLITE SUNLITE DIY SUNPAL SUNGLAZE
What Is the Right Saw for Cutting SUNTUF Corrugated Polycarbonate Sheets?
+
Safety First: Protect yourself by using professional equipment, keeping your surroundings neat and tidy, and using tools with caution and care.

Power tools
Circular table saws are the most efficient and accurate way to cut plastic sheets. This option, however, is rarely available on home improvement sites.
A portable fine-toothed circular saw is ideal for cutting on-site. High blade speed and moderate feeding rate will give you the best results.
A jigsaw also produces clean, accurate cuts, but requires better control. It is most suitable for cutting complex shapes and curved lines

Manual tools
Working with manual tools is time-consuming, but it reduces the possibility of sheet damage.
Manual handsaws with fine teeth provide accuracy and control.
Hand tools such as tin snips, scissors, or even a utility knife are useful when working with thin polycarbonate sheets or for making small notches.

Additional tools
You will need a flat, stable workbench to work on.
To set guidelines, you will need a tape measure, a ruler, and a marking pen.
SUNTUF DIY SUNTUF Plus SUNTUF BH SUNTUF STADIA SUNTUF ZigZag EZ Glaze
How to Cut SUNTUF Corrugated Polycarbonate Roofing Sheets DIY
+
Corrugated polycarbonate sheets are common roofing materials for DIY garden shelters and outdoor canopies. On-site tailoring and trimming is simple. Follow these guidelines to ensure quality results.
Safety First: Protect yourself by using professional equipment, keeping your surroundings neat and tidy, and using tools with caution and care.

Place a layer of cardboard or plywood on the workbench before placing the sheets. This will protect the surface from scratches.
Place the polycarbonate panels on your workbench.
Clamp a few sheets together. This will reduce vibrations.
Polycarbonate sheets come with a removable protective film or marking strip. This film indicates which side of the panel is UV-protected. Do not remove it. You will need it later.
Use a measuring tape to measure the sheet, and make pen marks at each end. Join the marks with a ruler.
Do not rush measuring and marking. Once trimmed, you cannot patch the sheets together.
Secure the polycarbonate sheets to the workbench surface to prevent movement and vibrations.
Support the sheets near the cutting line. You can do this by placing a timber plank on top of the sheets, parallel to the markings.
Cut along the marked pen line. The preferred method is to use a fine-tooth saw that rotates at high speed.
Advance the saw slowly and steadily and do not stop once you have begun. It will ensure a clean, consistent edge.
Remove leftover cuts and scraps from the cutting table.
EZ Glaze SUNTUF BH SUNTUF DIY SUNTUF Plus SUNTUF ZigZag
Can SUNTUF corrugated polycarbonate or PALRUF PVC sheets be bent into arches?
+
Corrugated plastic sheets are tough and flexible. You can easily bend them to a curved roof without losing material integrity. There is only one rule: stay within the allowed arch radius.
In simple terms, an arc is a segment of a circle, and its radius is equal to its circle’s radius.
Your sheet’s minimum bending radius is determined by its profile (corrugation) and thickness.
Typical DIY polycarbonate corrugated sheets can bend to an arc radius of 4,000mm. Some of the more robust sheets require a minimum radius of 7,000mm. Check the specs of your sheeting to be sure.
SUNTUF DIY SUNTUF BH SUNTUF Plus PALRUF EZ Glaze AG-TUF PALRUF DIY
What is the recommended purlin spacing for SUNTUF corrugated polycarbonate roofs?
+
The required purlin spacing for corrugated polycarbonate roofing depends on a number of factors, including the size and type of corrugated sheets. In addition, the type of support structure, and local building codes.
Follow Palram’s technical guidelines for the specific SUNTUF product you have chosen. This will ensure that the roofing is properly supported and able to withstand the loads and stresses it will be subjected to.
SUNTUF DIY SUNTUF Plus SUNTUF ZigZag SUNTUF BH
Which side of the SUNTUF roofing sheet should face up?
+
Look for a removable strip that indicates which side of the sheet is UV-protected.
It is critical to install the sheets with the UV-protected side facing up.
Remove the marking strip after installation.
EZ Glaze SUNTUF BH SUNTUF DIY SUNTUF Plus SUNTUF ZigZag
How many side overlaps does SUNTUF or PALRUF corrugates roofing require?
+
With a proper roof pitch, an overlap of one corrugation between sheets will keep the roof leak-safe, as long as the sheets are laid correctly.
Find the primary direction wind and rain are expected to come from and place the first sheet in the opposite direction. The next sheet will overlap the first, and so on. By doing so, you reduce the chance that water and dust will penetrate between the sheets.
SUNTUF DIY SUNTUF Plus SUNTUF BH PALRUF PALRUF DIY
How to accommodate SUNTUF polycarbonate roofing sheets’ thermal expansion?
+
Polycarbonate roofing sheets can accommodate thermal movement by following these guidelines:
Keep a small gap where the SUNTUF sheets meet another object. Sheets expand most along their length, so pay attention to this direction.
Pre-drill oversize holes around the fixings. In this way, the screws won’t stress the sheets.
Polycarbonate ridge caps, wall connectors, and flashings should also be predrilled with oversized holes.
Applying foam tape along structural elements that come in contact with sheets will reduce friction noise.
Leave a 5cm-10cm overhang over the lower purlin.
EZ Glaze SUNTUF BH SUNTUF DIY SUNTUF Plus SUNTUF ZigZag
Why do polycarbonate roofing sheets require pre-drilling oversized holes?
+

Polycarbonate sheets are typically attached to support structures using screws or other fasteners. It is necessary to pre-drill oversized holes in the SUNTUF sheets to allow for expansion and contraction due to temperature changes. This is critical to ensuring the roof’s quality and performance over time.

SUNTUF DIY SUNTUF BH SUNTUF Plus SUNTUF ZigZag EZ Glaze

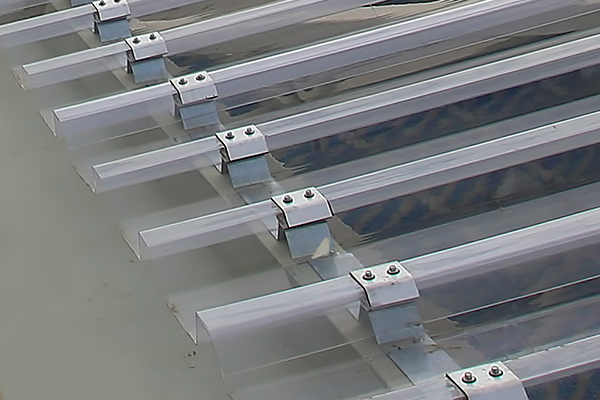

Which screws to use for fixing corrugated SUNTUF and PALRUF roofing sheets?
+
Use corrosion-resistant screws for optimal long-term service
Use screws with an outside thread diameter of ¼”
Screw shaft length varies with corrugation profile and fixing location (crest or valley).
Use self-tapping screws for timber purlins, and self-drilling screws for metal purlins.
SUNTUF DIY SUNTUF BH SUNTUF Plus SUNTUF ZigZag PALRUF PALRUF DIY EZ Glaze AG-TUF
What kind of gasket is suitable for corrugated SUNTUF and PALRUF sheets?
+
Flexible EPDM gaskets with metal washers.
Flexible EPDM gaskets allow just enough free movement for the sheets as they contract and expand. This ensures an effective seal against leaks and reduces stress and micro cracks. The metal washers will distribute the fastener load and will support the gasket.
Gaskets should conceal holes properly.
Use a 25mm gasket for a 10mm drill. A 19mm gasket is the alternative when the corrugation profile does not allow a wider gasket (if the valley or crest is too narrow).
SUNTUF DIY SUNTUF Plus SUNTUF BH SUNTUF ZigZag EZ Glaze AG-TUF PALRUF PALRUF DIY
How do I combine SUNTUF rooflights or sidelights with corrugated metal roofing?
+

Palram’s MetalMatch technology enables a precise match of corrugated SUNTUF to almost any industrial metal sheet. Contact your local Palram office for more details.

How to clean polycarbonate roofing?
+
Here are some steps to clean your polycarbonate roofing sheets:
Remove any loose debris, such as leaves or twigs, from the sheets surface using a broom or leaf blower.
Dip a soft cloth or sponge into a bucket of warm water and gently scrub the sheets, working in small sections at a time.
Rinse the sheets thoroughly with water to remove any remaining dirt or soap suds.
Dry the sheets with a clean and soft cloth, or allow them to air dry.
Avoid using high-pressure water or a pressure washer. High pressure can damage the sheets’ surface.
Avoid using harsh chemicals or abrasive cleaners, as they can damage the sheets’ surface. Before using a detergent, ensure it is polycarbonate-compliant.
If the sheets are particularly dirty or have stains that are difficult to remove, you may need to repeat the cleaning process a few times to get them fully clean.
In addition to cleaning the sheets, it is also worthwhile to regularly inspect the roofing for damage or wear.
SUNTUF DIY SUNTUF BH SUNTUF ZigZag EZ Glaze
Can I step on SUNTUF skylights during or after installation?
+

Although SUNTUF is remarkably strong and can support extreme loads, for your safety, do not stand directly on the sheets. If it can’t be avoided, use stepping ladders, platforms or crawling boards.

SUNTUF STADIA PALRUF
PALRUF PVC or SUNTUF polycarbonate corrugated sheets: when to use which?
+

PVC corrugated sheets are typically used in highly-corrosive environments such as port warehouses, cowsheds, and dairies for opaque roofing and siding. When natural daylight illumination is needed, polycarbonate corrugated sheets are used as roofing or siding.

PALRUF
Can polycarbonate light transmittance be degraded over time?
+

SUNTUF roofing sheets are made with a UV protection layer. This layer protects the sheets from UV radiation harm and maintains light transmittance and quality for many years.

SUNTUF DIY SUNTUF Plus SUNTUF ZigZag SUNTUF STADIA SUNTUF BH
