Corrugated PVC Liner Panels
AG-TUF® Corrugated PVC Liner Panels
Corrugated PVC liner panels for industrial and agricultural interior cladding
AG-TUF® Corrugated PVC Liner Panels
AG-TUF panels
AG-TUF® Corrugated PVC Liner Panels

AG-TUF® CORRUGATED PVC

Corrugated PVC liner panels for industrial and agricultural interior cladding and lining applications

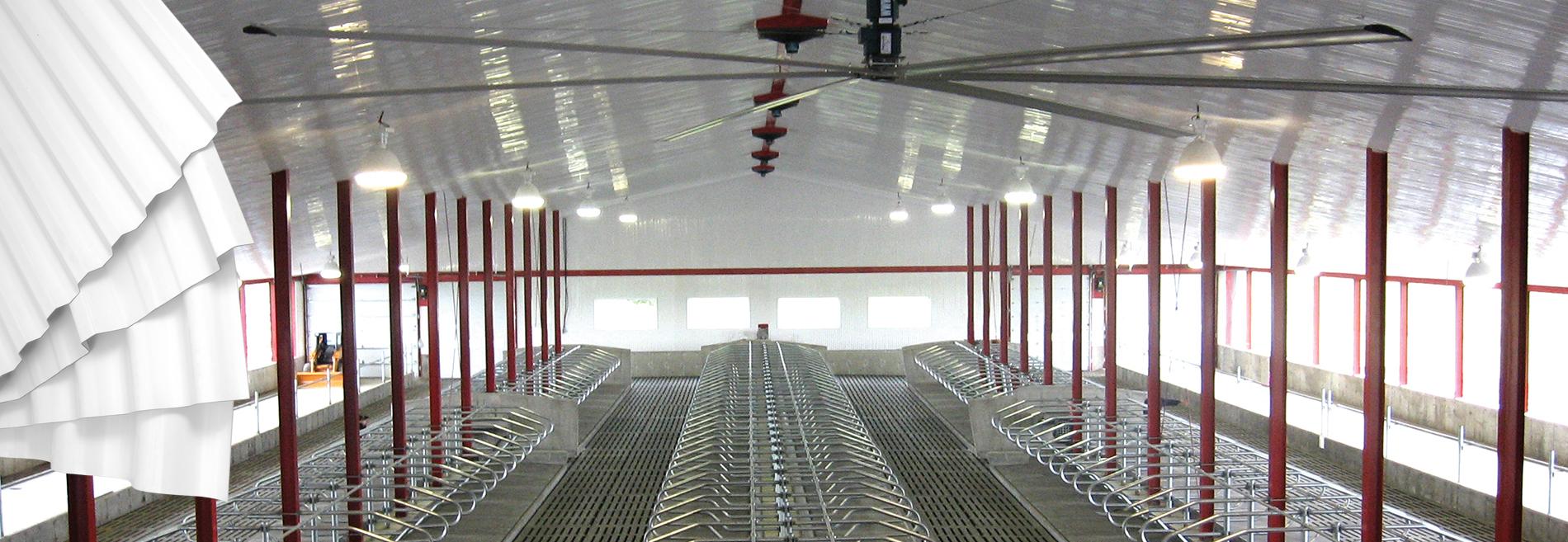

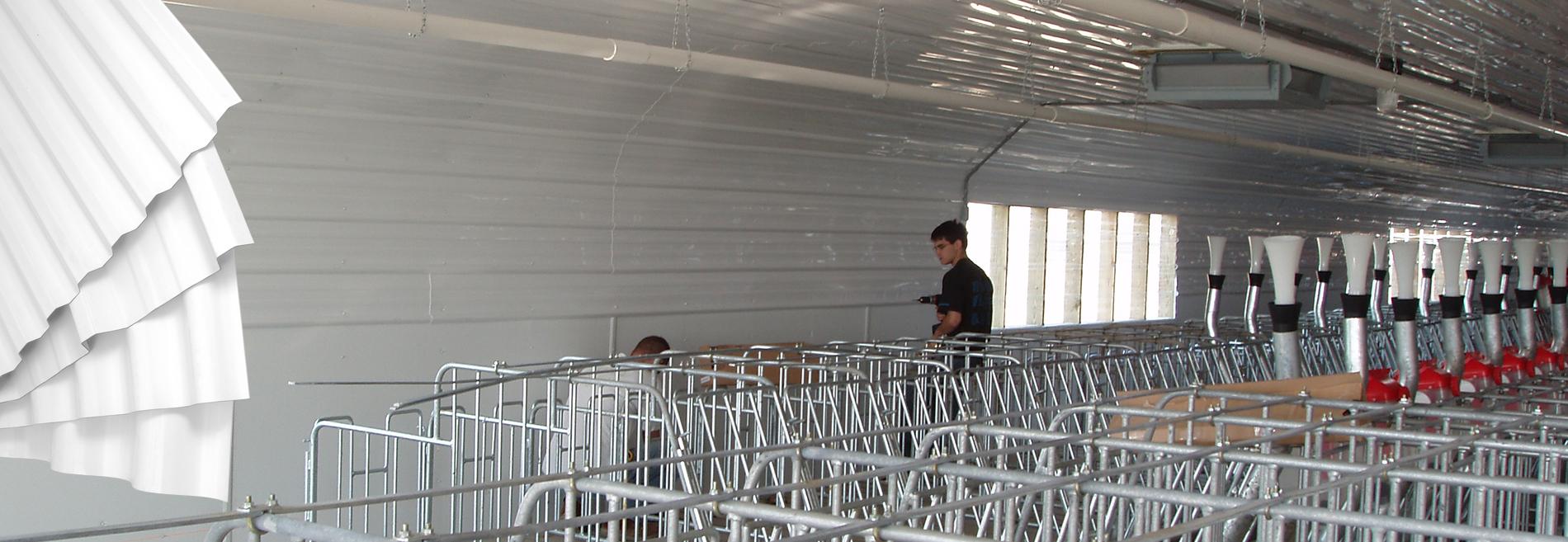

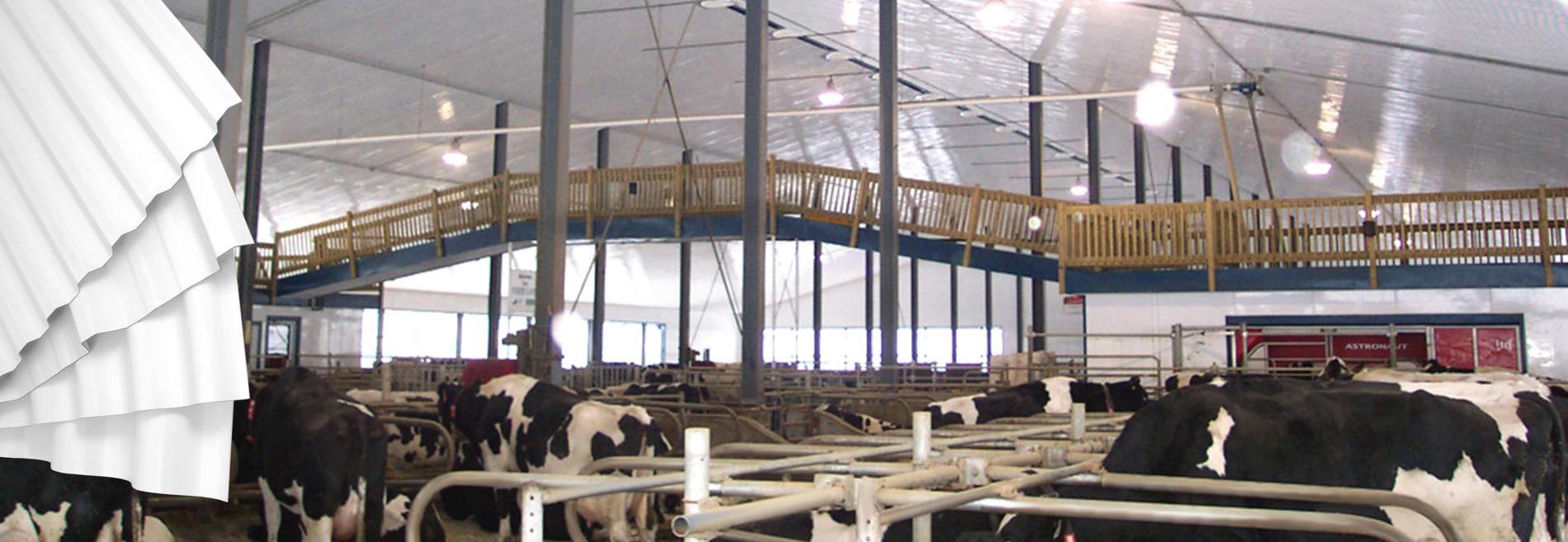

AG-TUF corrugated PVC liner panels have been produced by Palram for more than 50 years and have been used to clad the interiors of many types of industrial and agricultural structures around the world. From hog barns to dairy sheds or poultry houses, car washes, chemical processing plants, or fertilizer storage facilities, AG-TUF panels hold up where other products don’t. As they are resistant to chemicals, these panels can be cleaned frequently to facilitate maximum sanitary maintenance while still offering extended service in harsh chemical environments. AG-TUF panels are easy to install using ordinary tools. They can be used to line the interior of your structure to make it instantly become brighter, easier-to-maintain, and provide an attractive glossy appearance. AG-TUF corrugated PVC liner panels are one of many Palram products for these market segments.

Royal Institute of British Architects

Royal Institute of British Architects

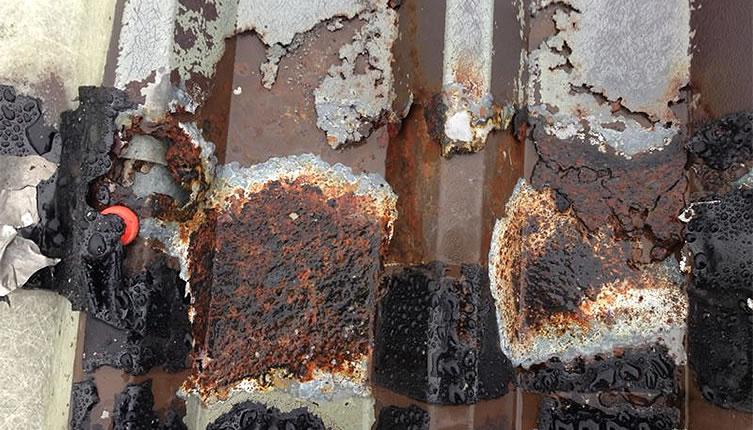

WHY AVOID METAL SHEETS IN CHEMICALLY AGGRESSIVE AND CORROSIVE ENVIRONMENTS?

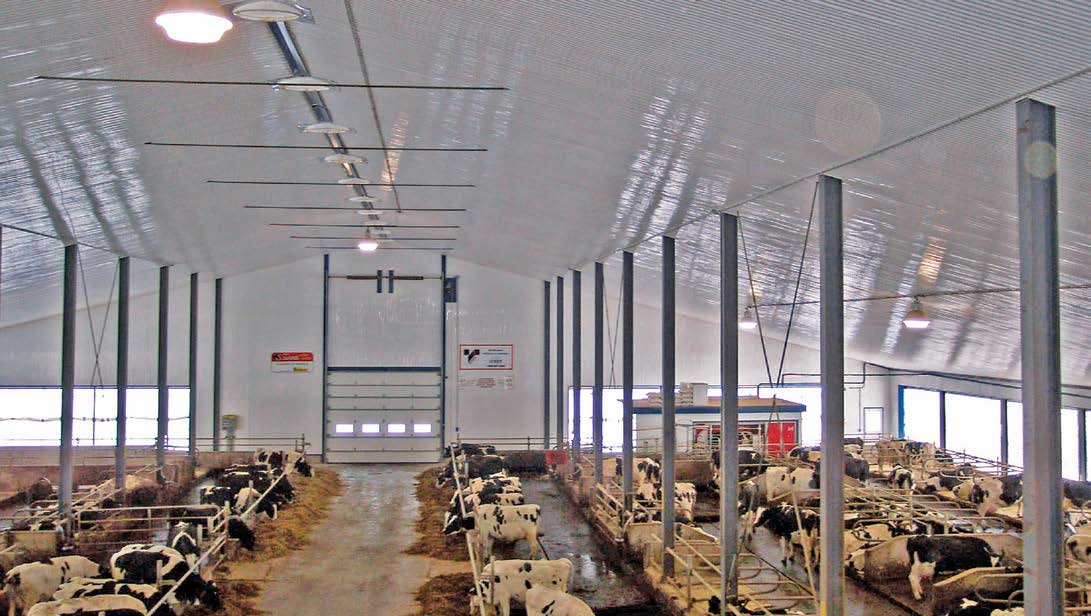

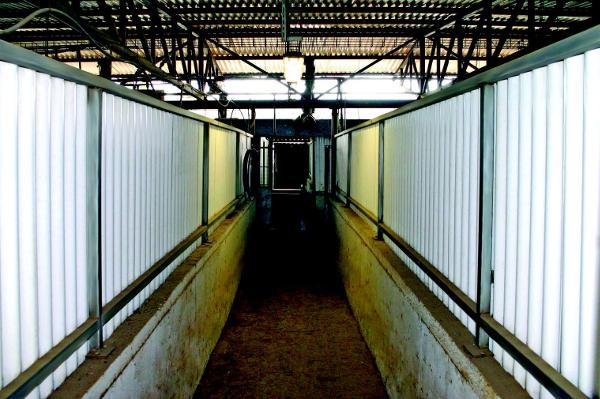

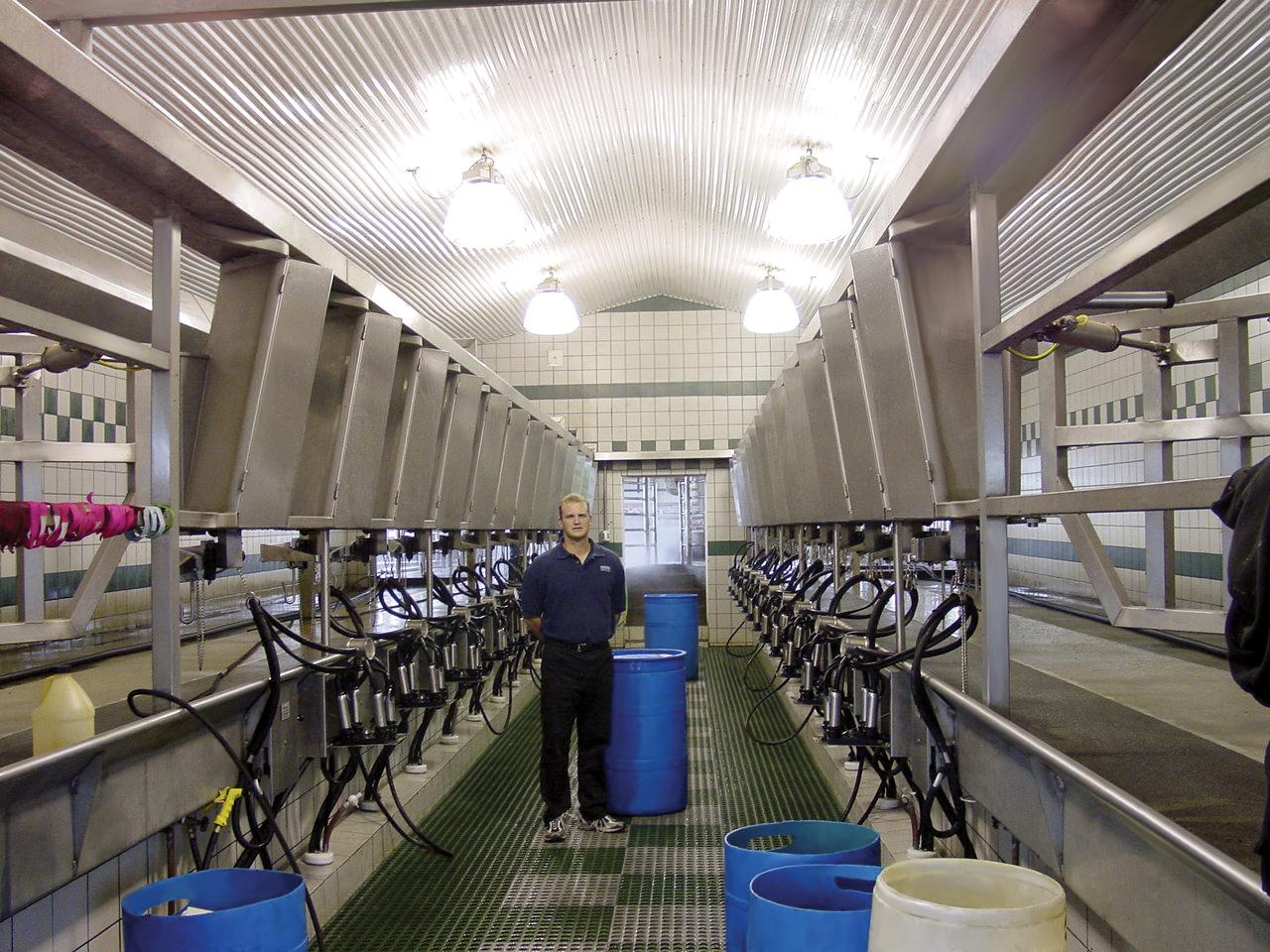

Agricultural environments such as barns, pigpens, hen houses, dairies, and stables can present multiple challenges for any interior lining or cladding material. Gases such as ammonia and hydrogen are common in livestock feeding or housing environments, and they are the source of quick and widespread rust and corrosion for metal. This corrosion results in high maintenance and replacement costs. AG-TUF sheets offer a corrosion-free and chemical-resistant alternative that provides farmers with years of low cost, low maintenance and greater hygiene.

Industrial environments such as mining and chemical processing plants create dust and ash that, when combined with mist, rain, and perhaps even saltwater, coat the roofing with a layer of sentiment that is highly corrosive to metals. But not in the case of AG-TUF. These corrugated PVC lining boards are virtually maintenance free and endure a wide variety of gases and chemicals for the lifespan of the panel—and under the harshest conditions.

WHY AVOID METAL SHEETS IN CHEMICALLY AGGRESSIVE AND CORROSIVE ENVIRONMENTS?

Product Details

Product Availability

SpecificationAvailability
Width (mm)1115
Length (mm)Up to 7.3
Thickness (mm)1.2
ProfileGreca 76
Colour*Bright White: Opaque or 15% Translucent



Product Availability Note         *Light Grey Colour Available Upon Request



Available Colors          Bright White, Dark Grey*

Colors Text*Special Orders Available, But Subject To Surcharge And/Or Minimum Order Requirements.

Typical Physical Properties

PropertyConditions (U.S. Customary)ASTM MethodUnits - SI (U.S. Customary)Value (U.S. Customary)
Physical
DensityD-1505g/cmu00b3 (lb/ftu00b3)1.4 (87.4)
Mechanical
Tensile Strength at Yield10 mm/min (0.4 in./min)D-638MPa (psi)52-66(7542-9573)
Tensile Strength at Break10 mm/min (0.4 in./min)D-638MPa (psi)39-53(5656-7687)
Elongation at Yield10 mm/min (0.4 in./min)D-638%3
Elongation at Break10 mm/min (0.4 in./min)D-638%140-160
Tensile Modulus of Elasticity10 mm/min (0.4 in./min)D-638MPa (psi)2700(391,600)
Flexural Modulus1.3 mm/min (0.05 in./min)D-790MPa (psi)2200(320,000)
Flexural Strength at Yield1.3 mm/min (0.05 in./min)D-790MPa (psi)90-100(13,100-14,500)
Impact Falling Weight3 mm (0.12 in.) SheetISO-6603/1bJ (ft-lbf)45-60(33-44)
Rockwell HardnessD-785R scale / M scale105-115
Thermal
Long Term Service°C (°F)-20 to 50 (-4 to 122)
Heat Deflection TemperatureLoad: 1.82 Mpa (264 psi)D-648°C (°F)61-67(142-152)
Coefficient of Linear Thermal ExpansionD-69610-⁵ /°C (10-⁵/°F)6.3 (3.5)
Thermal ConductivityC-177W/m°K (Btu-in./hr-ft²-°F)0.16 (1.11)

Flammability



StandardClassification
ASTM D365CC1
EN 13501B,s3,d0
ASTM E84Class A

Frequently Asked Questions

Why do I have to pre-drill fastener holes in roofing with corrugated panels?
+ -

Pre-drilling the holes ensures that the panels have room to expand and contract properly with temperature changes. Skipping this step can lead to distorted, warped or cracked panels.

Is PALRUF resistant to UV radiation?
+ -
Can corrugated sheets be curved?
+ -

Yes. Corrugated sheets can be cold-curved to create arched shapes. It's important to follow the relevant Palram specifications for minimum radius in cold-curving, which can be found in the Installation Instructions of the relevant sheets. In addition, corrugated sheets should be arched so that the corrugations themselves are curved lengthwise.

How do I design the secondary steel support spacings for roofing/siding?
+ -

Palram created specific loading tables for each product. Please visit our website and download the specific catalog.

Can I install corrugated PVC and polycarbonate sheets horizontally for siding?
+ -

Yes. Make sure you start installing from the bottom up so the overlaps will not let the water in.

What are the common applications of corrugated PVC sheets?
+ -

The common applications of corrugated PVC sheets are buildings that require opaque coverings and/or are located in highly-corrosive environments such as chemical plants, coastlines, cowsheds, and dairies.

When should I use PVC corrugated sheets versus polycarbonate corrugated sheets?
+ -

PVC corrugated sheets are mainly used for opaque roofing and siding of industrial buildings in highly-corrosive environments such as port warehouses, cowsheds, and dairies. Polycarbonate corrugated sheets are mainly used as roofing or siding where natural daylight illumination is needed.

Do Palram's animal covering and cladding solutions have thermal insulation properties?
+ -

All of Palram's animal covering & cladding solutions have superior thermal insulation properties compared to metal coverings.

Is PALRUF resistant to animal residue?
+ -

All of Palram's animal covering & cladding solutions are resistant to animal residues, detergents, and other chemicals, and come with a 10+ year warranty.
